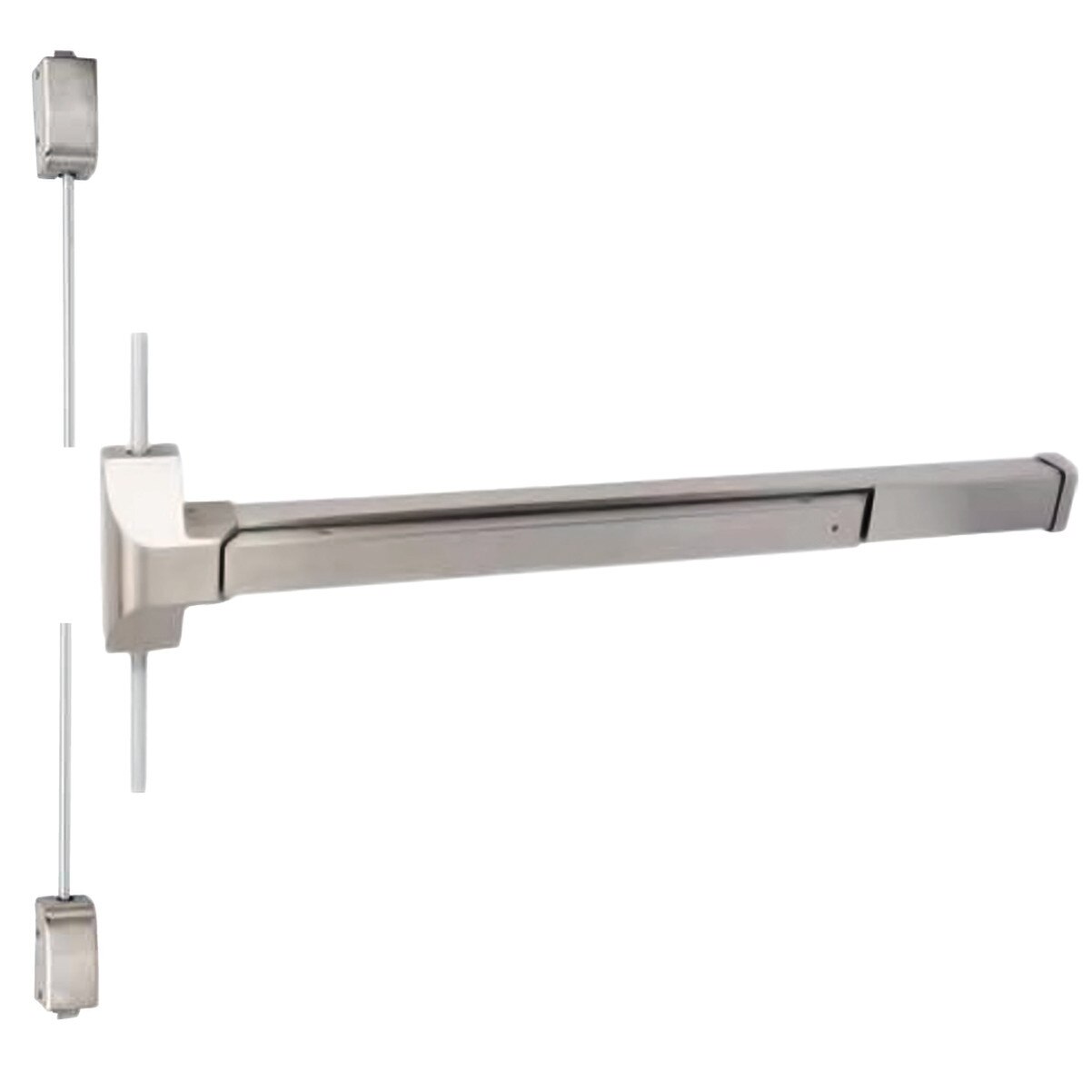

7100 Vertical Rod Exit Device, SVR, LBR, Grade 1

Certification

• ANSI Grade 1 Approved, Exceeds 500,000 Cycles
• UL305 Listed for Panic Hardware
• UL Listed for Up To 3HRS on “A” Label Fire Door *for fire-rated models
• UL10B Neutral Pressure Rated UL10C/UBC7-2(1997)
• Positive Pressure Rated Comply with ANSI117.1 for Accessible and Usable Buildings and Facilities Standards

Door Fitting 1-3/4” Door Thickness Rim – 4-1/2” Minimum Stile Width for Single Door with 5/8” Stop SVR – 4-1/2” Minimum Stile Width for Single Door with Outside Trim 3-1/2” Minimum Stile Width for Single Door without Outside Trim

Door Width

• 36” – Rail Can Be Cut From The End To Fit Door Size Down To 30”

48” – Rail Can Be Cut From The End To Fit Door Size Down To 40” Door Height

• 84” – Standard With 36” Device
• 96” – Standard With 48” Device Structure
• Head Cover – Plated Zinc Alloy
• Chassis – Steel Or Stainless Steel
• End Cap – Plated Zinc Alloy
• Rail Assembly – Heavy Gauge Steel Or Stainless Steel

Latch Bolt

• 1/2” Throw
• Strike Top: SVRTS72 Standard Top Strike, Bottom: SVRBS73 Standard Bottom Strike
• Fastener Furnished with Wood Screws and Machine Screws Sex Bolts
• Filler 9222 – 1-1/8” x 2-1/4” Latch Front Filler 9209 – 1-1/4” x 4-7/8” ASA Strike Filler
• Handing Standard with LHR or RHR, Easily Field Reversible
• Dogging Standard for 7000 / 7100 (Non Rated)
• Finishes (BHMA) US32D (630), ALUM (689), DURO (695), US19 (622)
