Janus Roll-Up Door Bottom Seal - 3/16" V, 1" Bulb, 100' Roll | JAN-STL-SEAL-V-KIT100

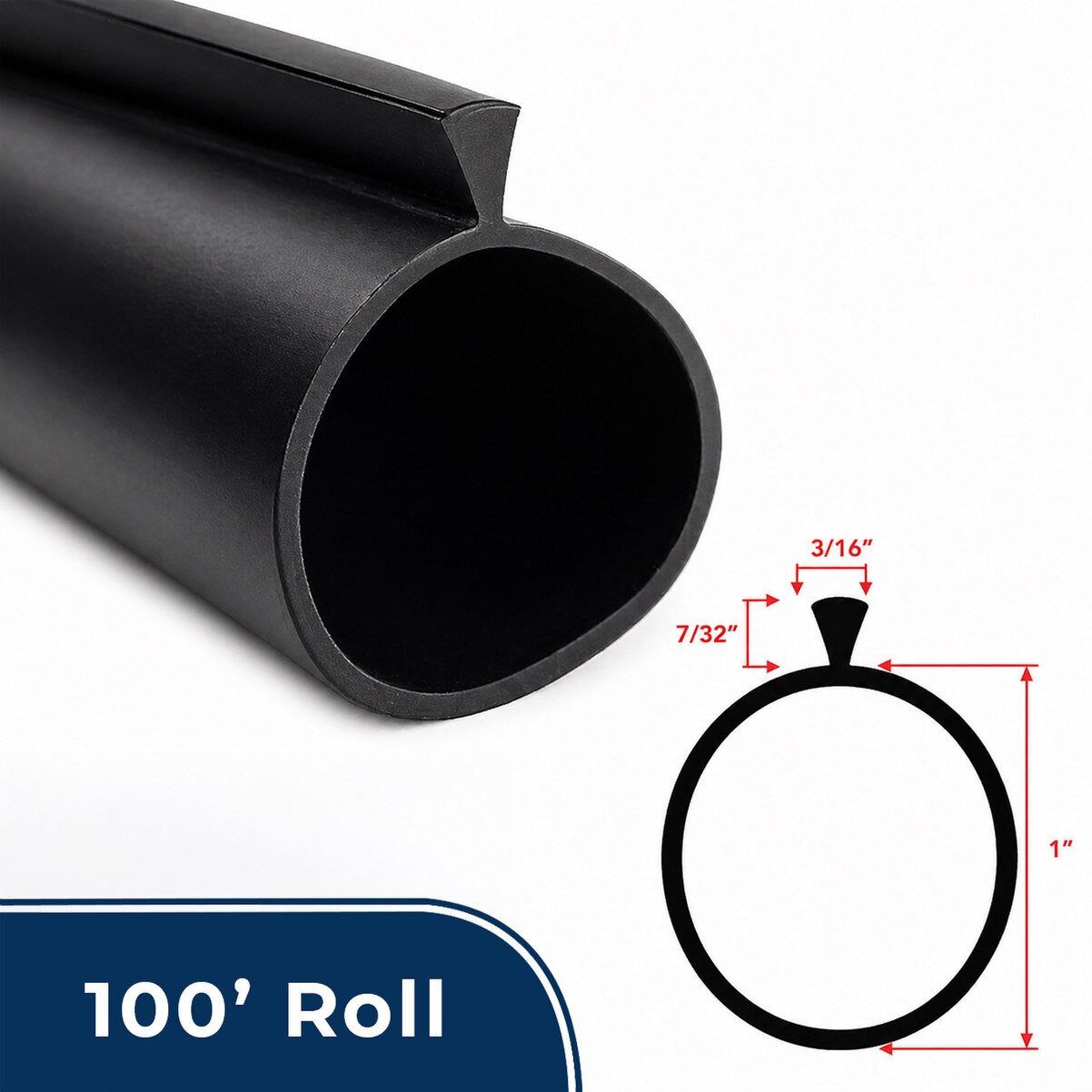

This 100-ft roll of Janus-style bottom weather seal is used to replace worn, cracked, flattened, or missing bottom seal on compatible self-storage, mini-warehouse, and other overhead doors that use an equivalent seal profile. The 3/16" V-style mount fits into the bottom seal retainer, while the 1" bulb helps close the gap between the door and the floor or threshold.

The 100-ft roll is a practical option for maintenance teams, contractors, and facilities replacing seal across multiple doors or cutting custom lengths in the field. For smaller repair work or shorter field-cut lengths, the 24.5-ft roll may be a more convenient option.

Fit and Compatibility

• Designed for Janus-style roll-up door bottom seal retainers
• Fits 3/16" V-style bottom seal tracks
• 1" bulb profile helps improve door-to-floor sealing
• Can be cut to length for multiple compatible doors
• Used on many self-storage, mini-warehouse, and compatible overhead door applications

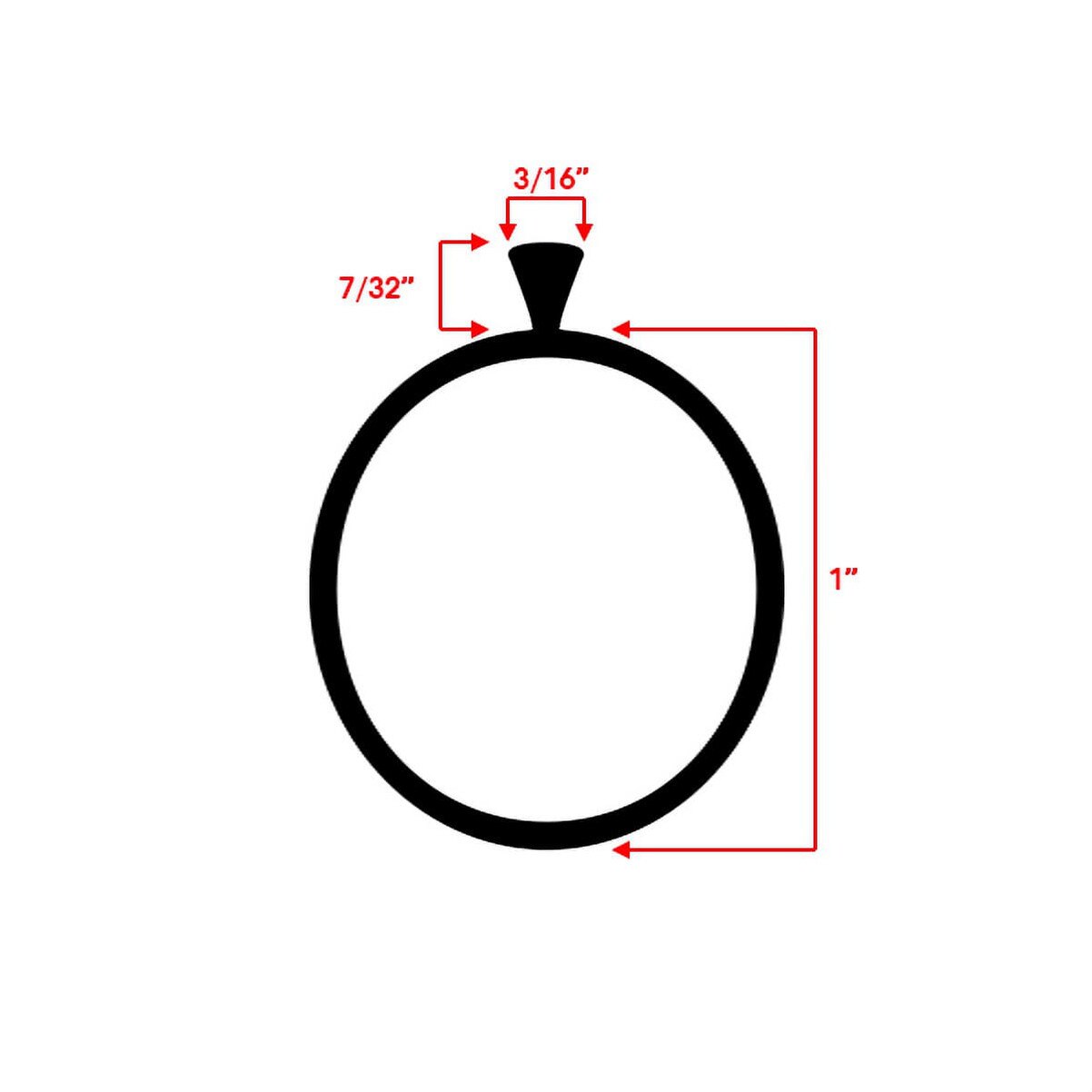

• Review the seal measurements shown on this page before ordering
• Samples may be ordered to confirm fit before purchasing full rolls

Installation Notes

• Remove the old bottom seal and clean the retainer before installing the replacement seal.
• Check the retainer for crushed, bent, or pinched areas and straighten as needed.
• Cut the new seal slightly longer than needed, then trim to final length after installation.
• If needed, use a small amount of plastic-safe, non-staining lubricant in the retainer to help the seal slide through the track.
• Keep lubricants away from visible painted surfaces, hasps, latch areas, and any areas that may be repainted later.
• Avoid pulling with excessive force, which may stretch or damage the seal.
• Lightly crimp the track ends if needed to help reduce seal movement after installation.

This replacement seal may also be referred to as bottom weather seal, door astragal, roll-up door weather stripping, or Janus-style V-seal. It helps reduce drafts, light gaps, dust, and water intrusion at the bottom of compatible roll-up doors.
