Advantage Outside Plate Trim for 7000/7100 Exit Devices

Specifications

Trim is furnished with two mortise nuts and screws for 1-3/4" door standard. Design trim will cover a 161 cutout. For rim device only.

Finishes available: Aluminum and Duro

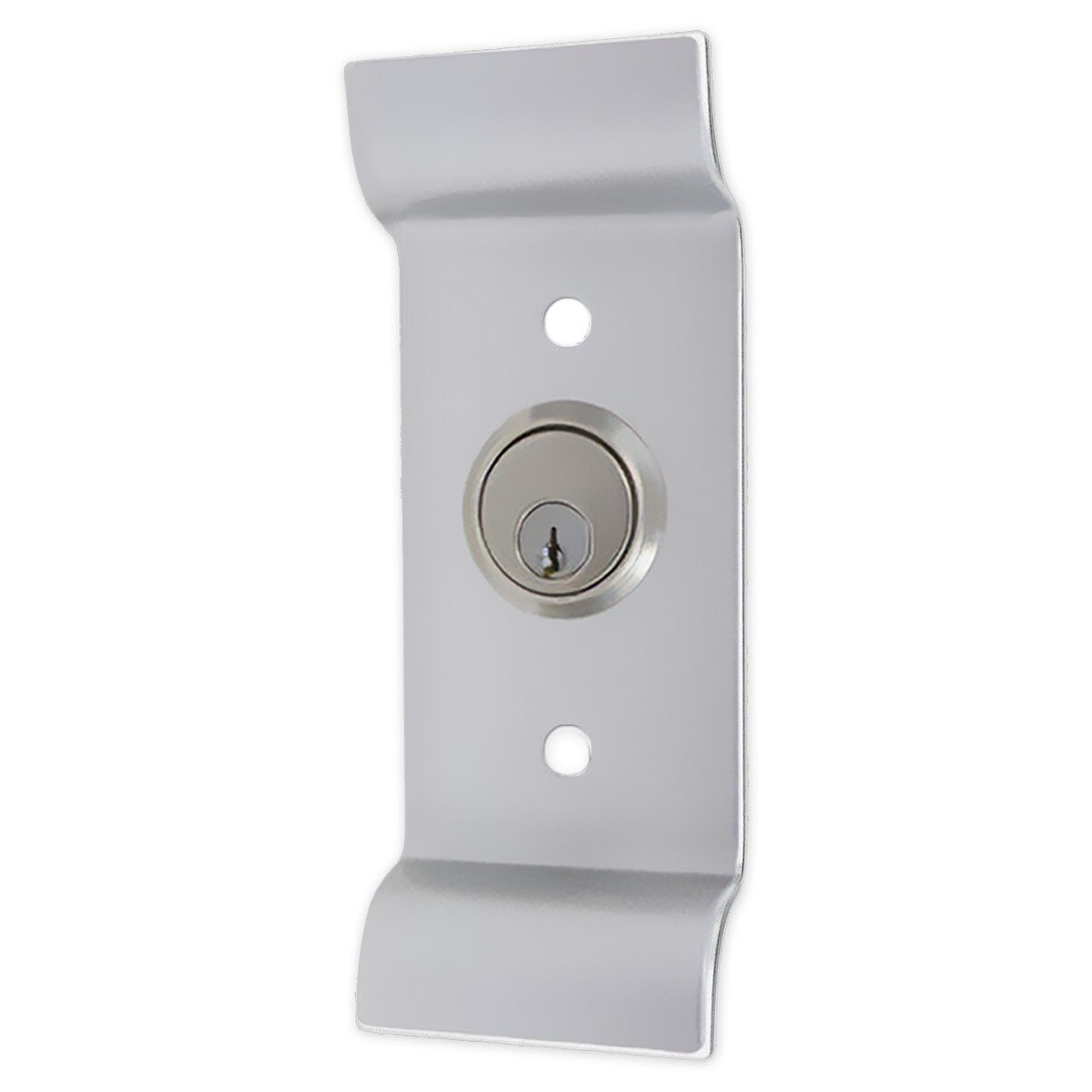

611OP - Outside by pull and key. Key retracts latch bolt. Covers 161 cutout. ANSI function-03

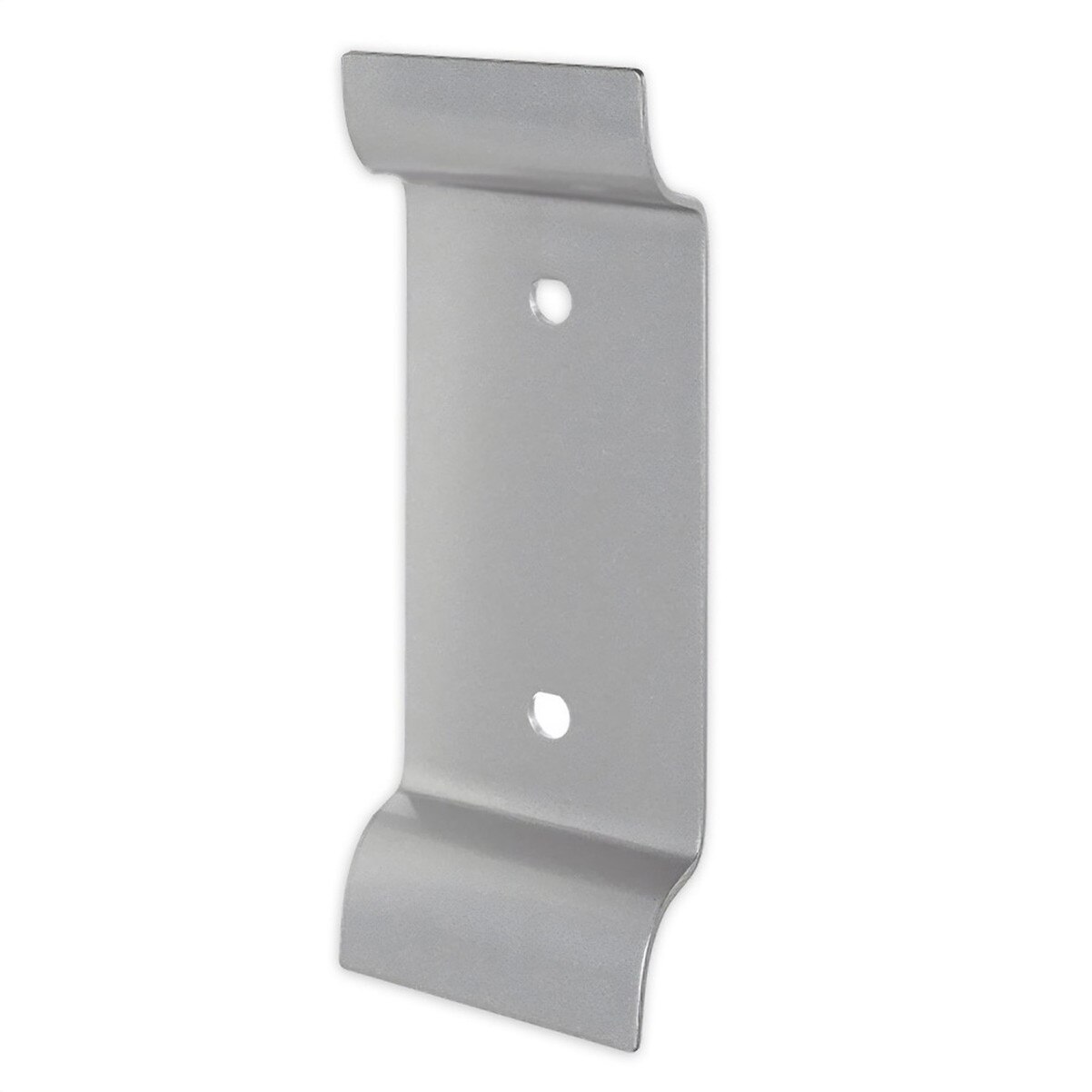

615OP - Outside plate with pull - outside by pull only. Pull when dogged. Covers 161 cutout. ANSI function-02

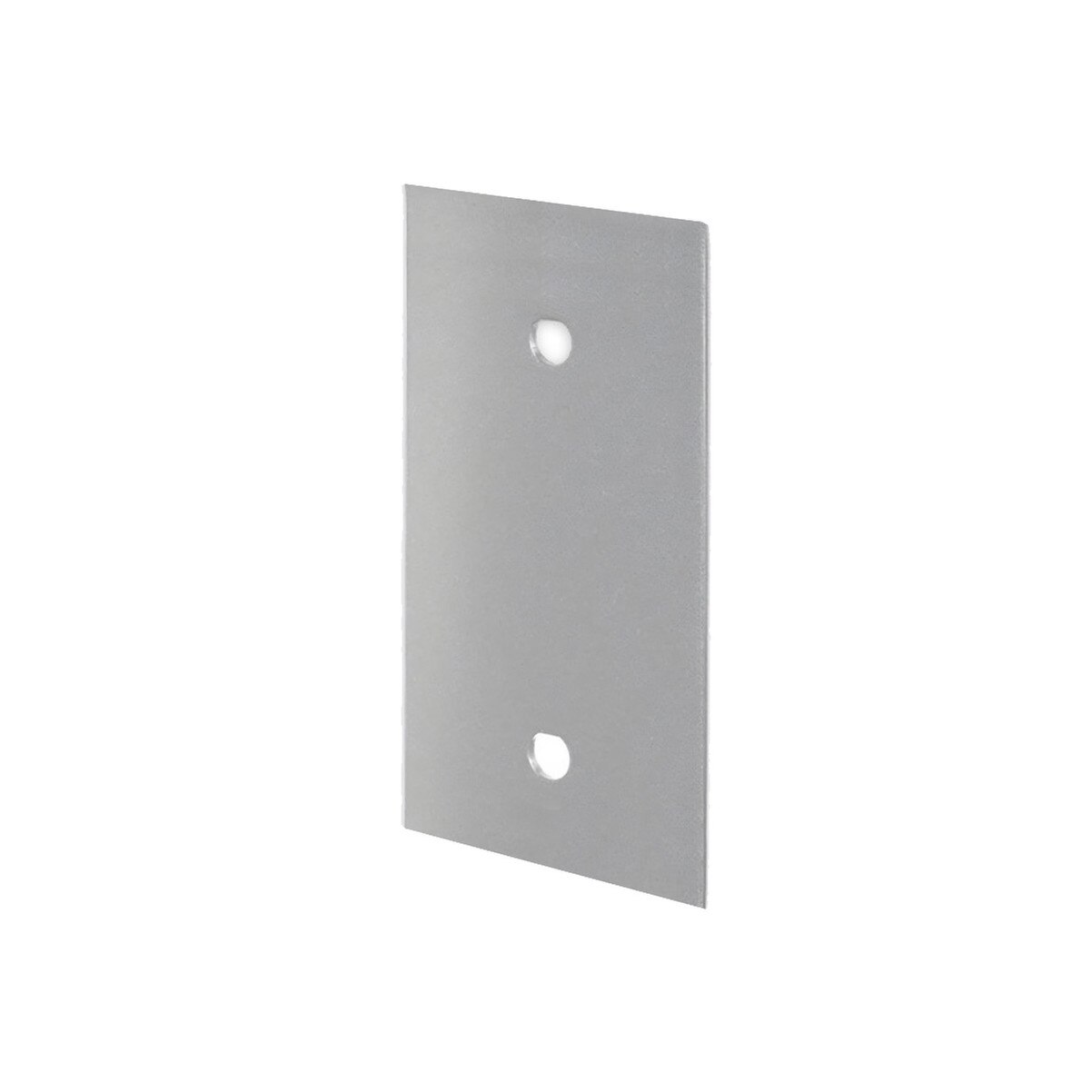

630OP - Outside plate - blank plate to cover 161 cutout
