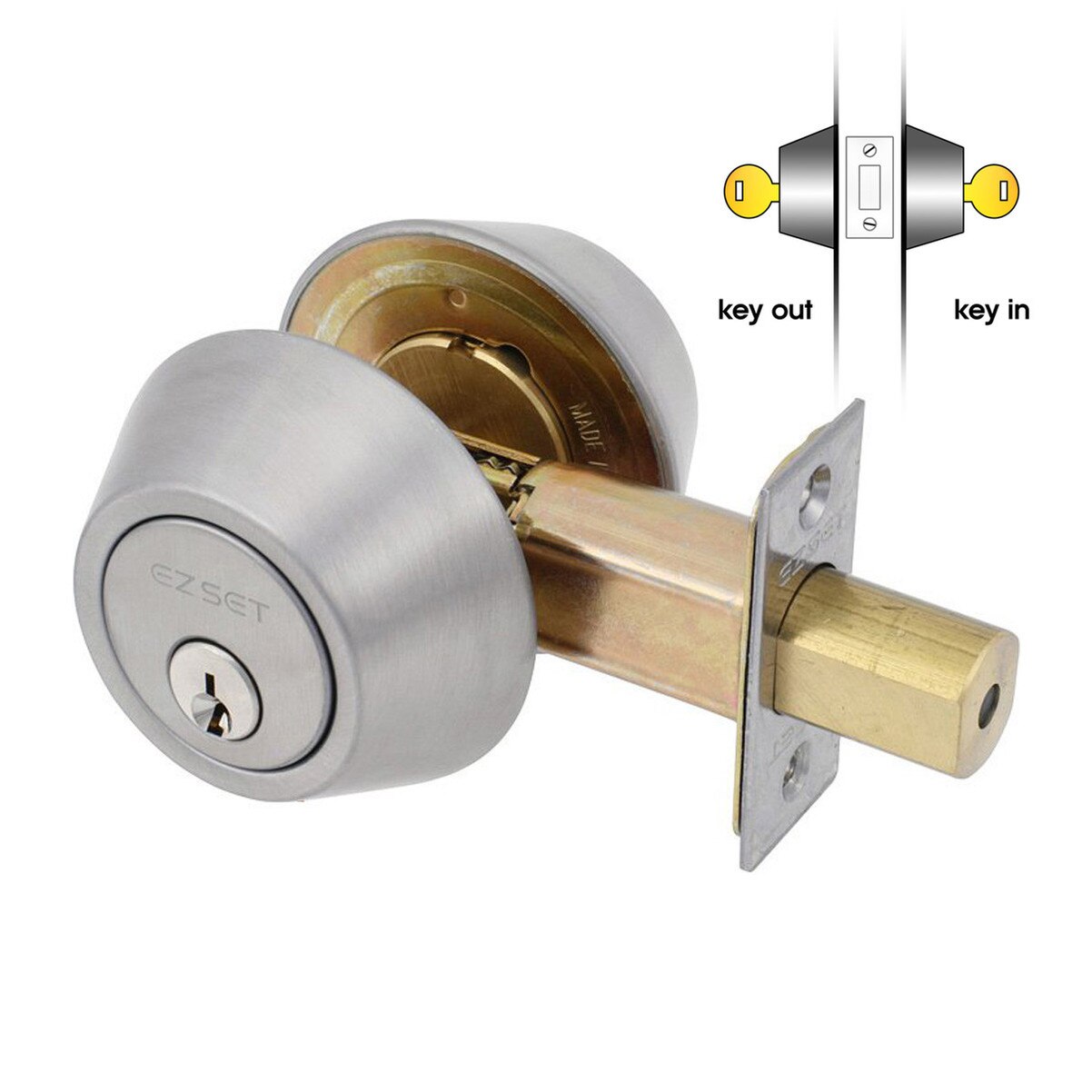

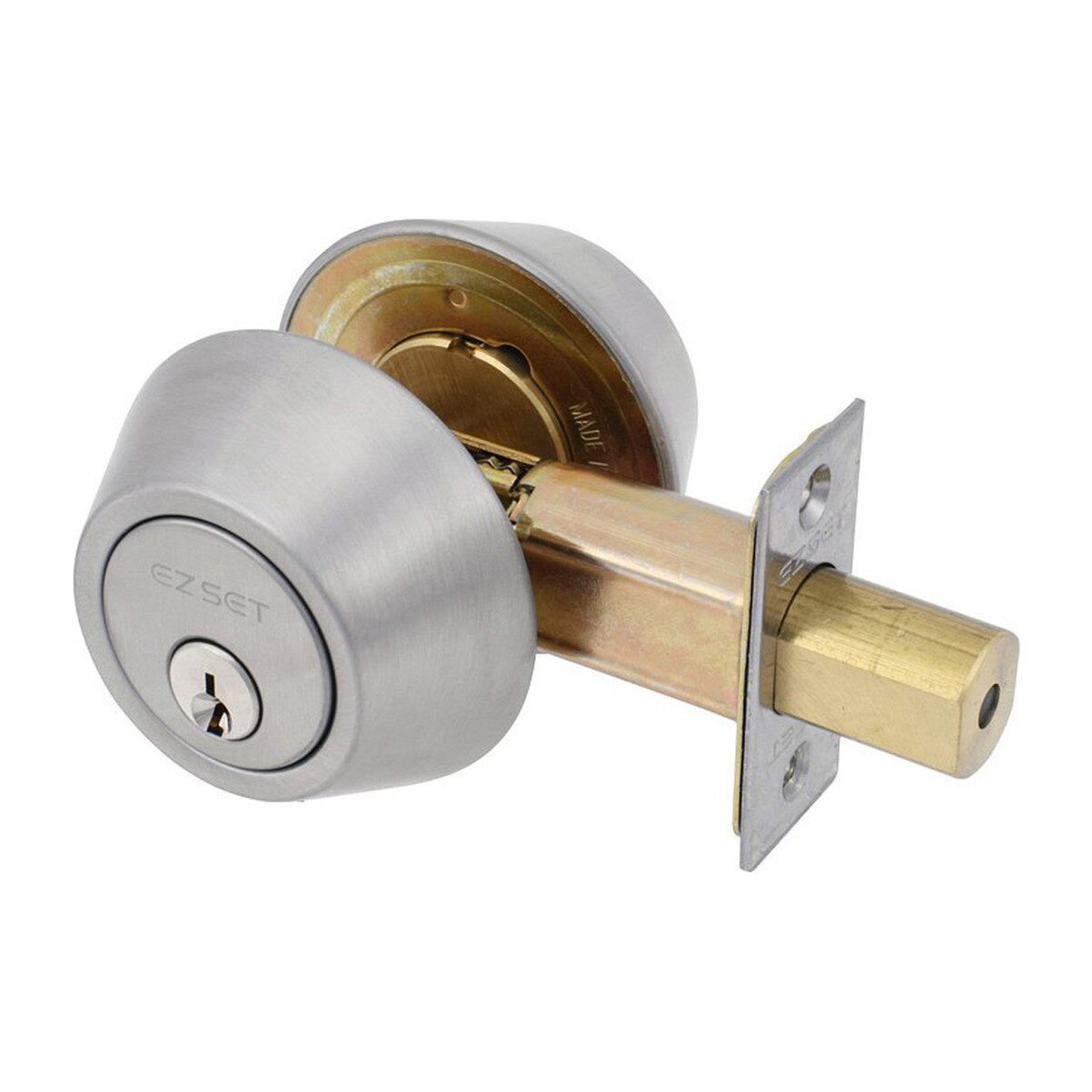

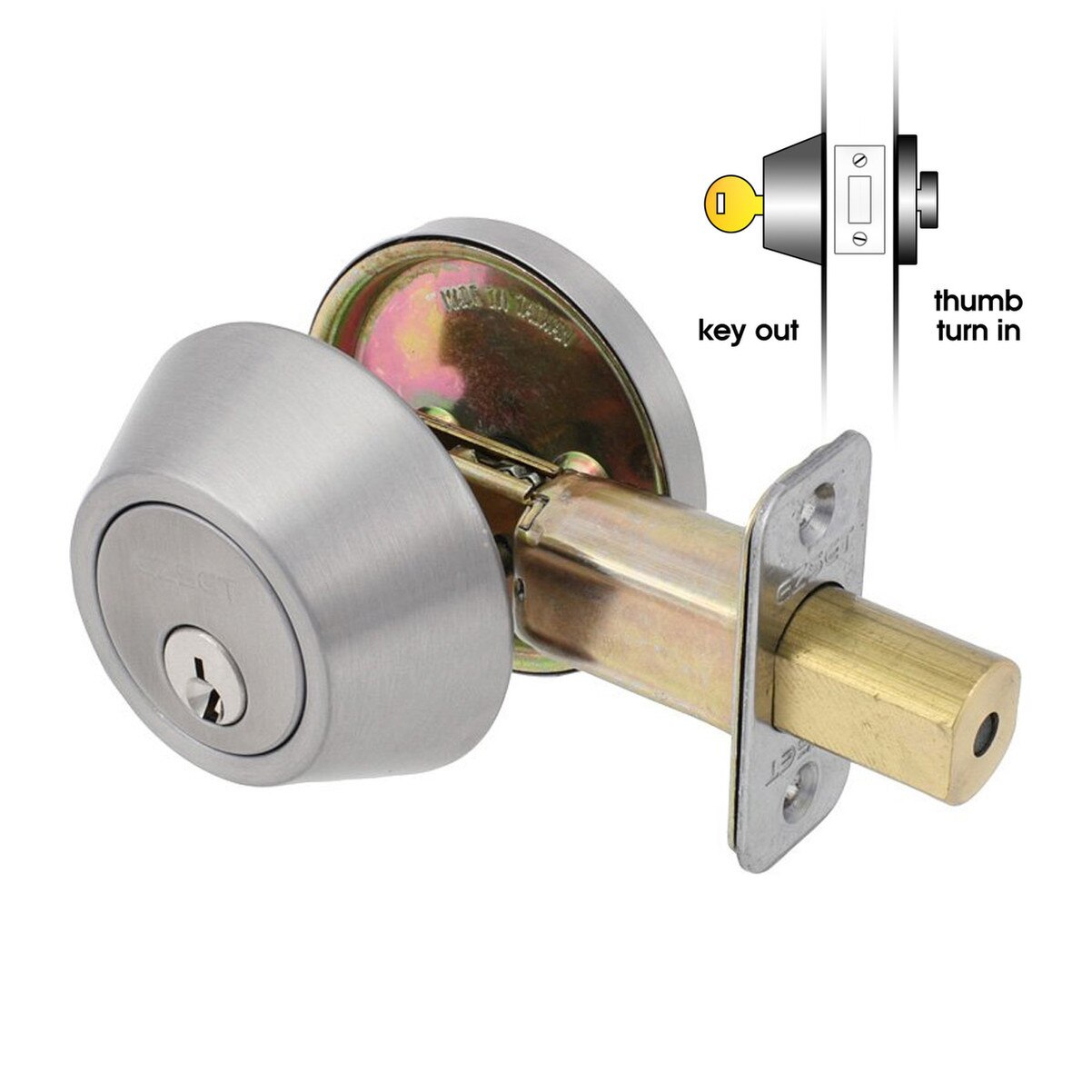

Advantage LU Series Deadbolt, Grade 2

Specifications

• Door Fitting 1-3/8” ~ 1-3/4” door thick.
• Exposed Trim Wrought brass or stainless steel.
• Keys 2 brass keys per set.
• Cylinder Solid brass SC4 6-pins standard with black powder metallurgy cylinder housing.
• Latch 1” throw solid brass deadbolt latch with hardened steel rod insert.
• 1” x 2-1/4” faceplate adjustable mortise deadbolt latch (L90A0T).
• Strike Standard deadbolt strike (9111), and 1/8” wood frame reinforcer package (9221).
• Screws Combination screws for both metal and wood doors.
• UL LISTED
• ANSI GRADE 2
• ANSI/BHMA A156.5-2001
• 3 hours Fire rating
• UL10C/UBC 7-2(1997)
• Positive Pressure Rated
