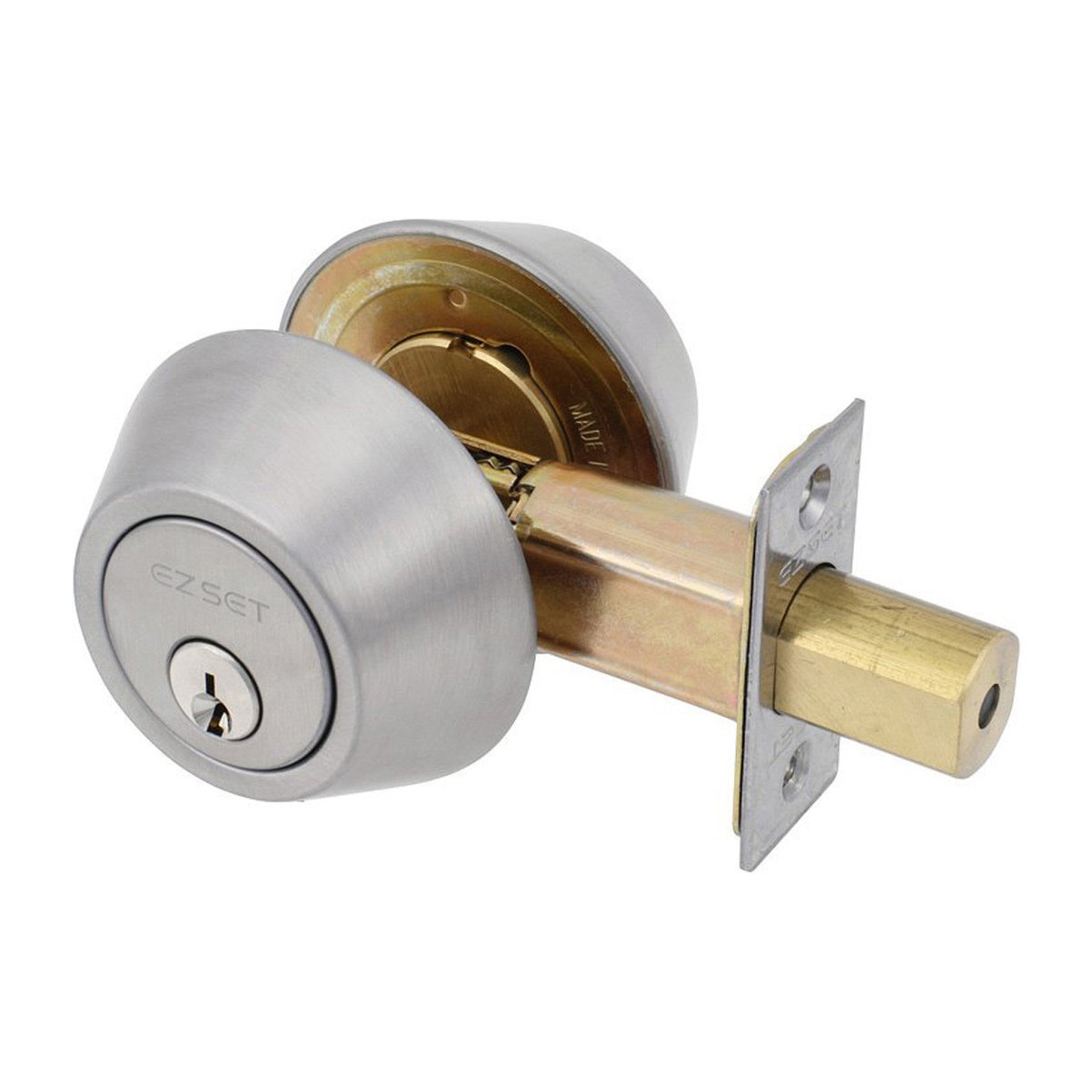

Advantage LM Series Deadbolt, Grade 1

Name: Advantage LM Series Deadbolt, Grade 1
SKU: LM
Availability: InStock

(0)No Reviews yet

Qty:

SKU: LM

Functions

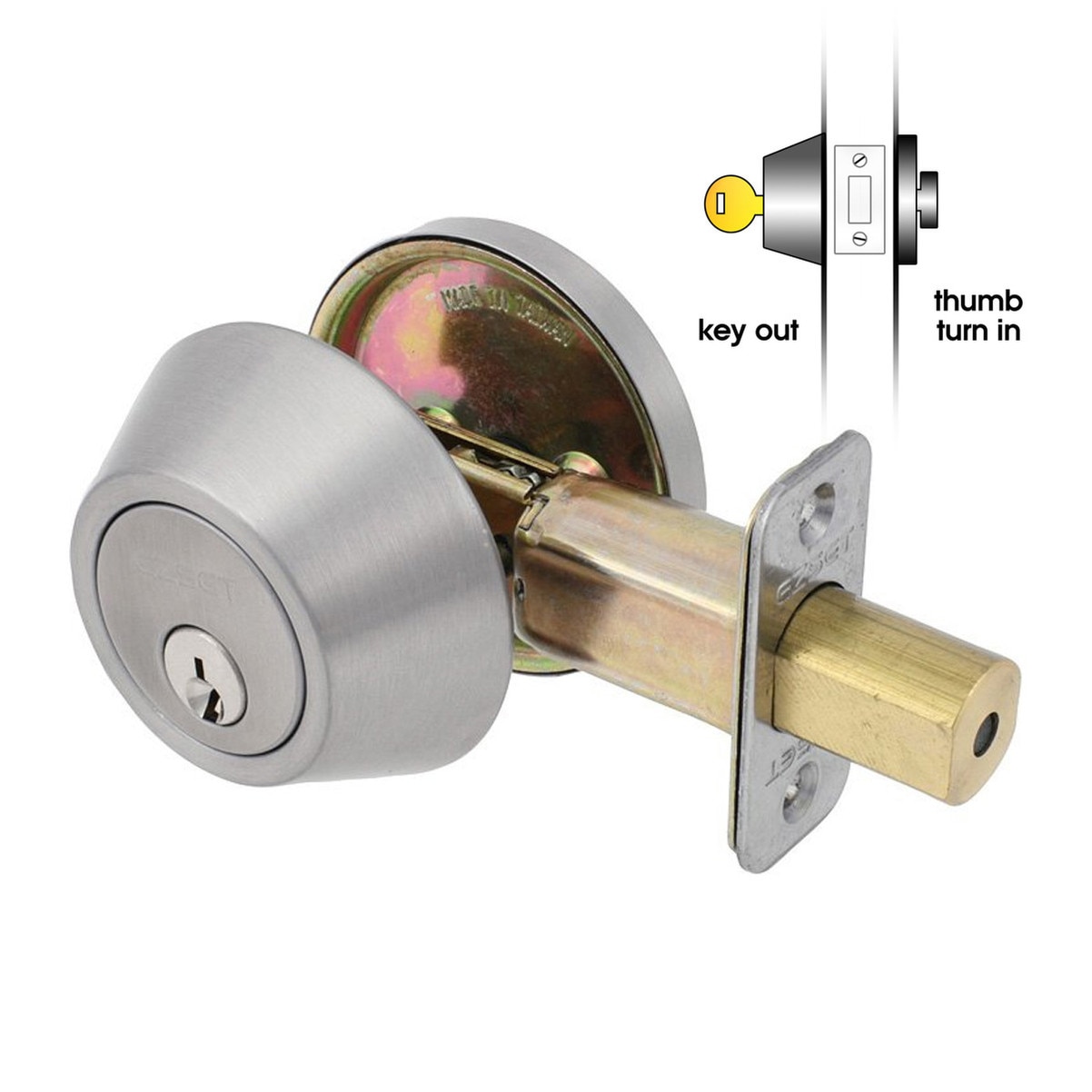

Single Cylinder
Thumb-turn on the inside, keyed cylinder on the outside — allows easy locking/unlocking from inside without a key.

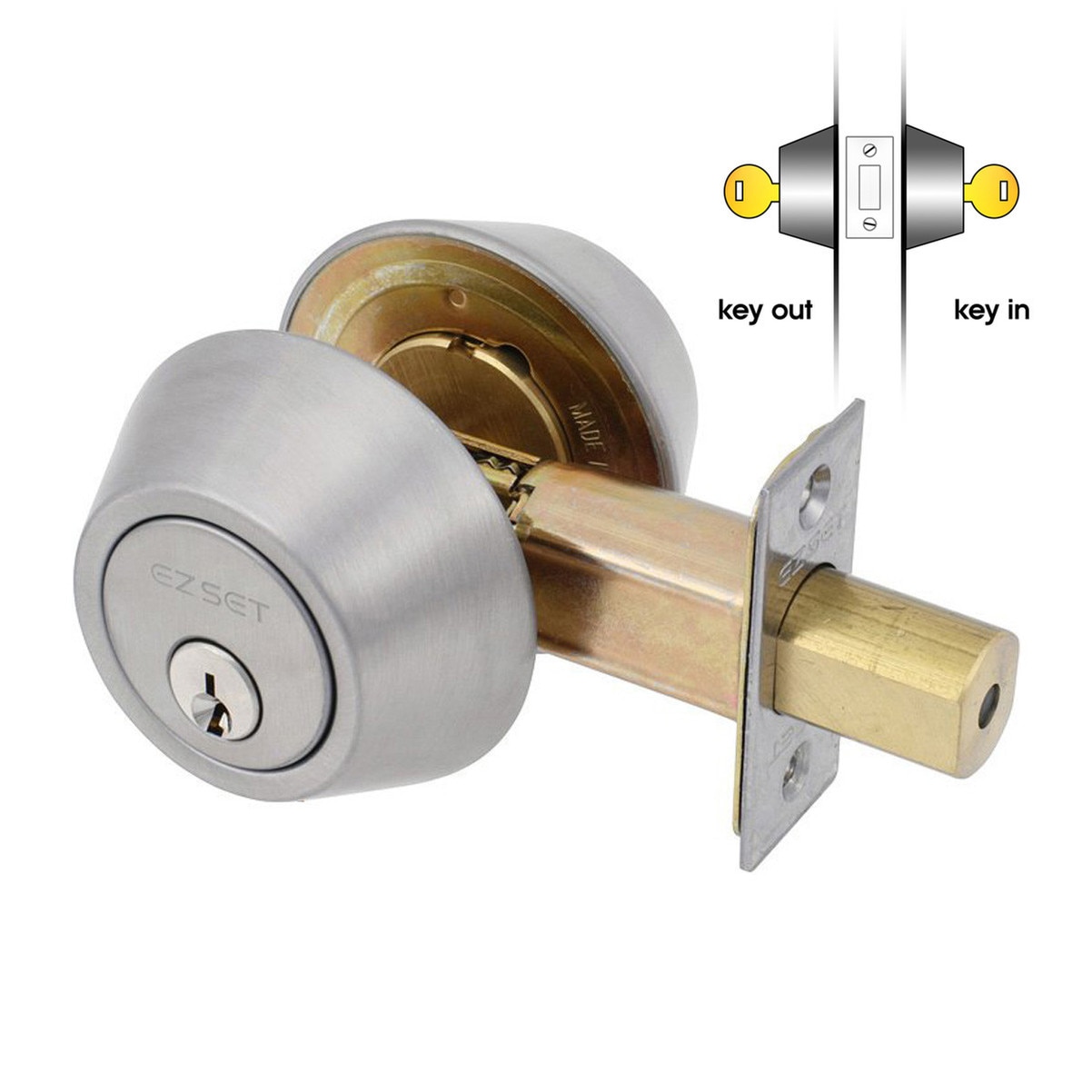

Double Cylinder
Keyed operation on both sides — requires a key to lock or unlock from either side (no internal thumb-turn).
Classroom
Key from the outside projects the bolt; inside turn-knob retracts the bolt but cannot extend it — allows egress but disables interior locking.

$64.85 to $93.85

Quantity	Price

Specifications

Door Fitting 1-9/16” ~ 2” door thick.
Solid forged brass.
Keys 2 per set.
Cylinder Solid brass SC4 6-pins standard with black powder metallurgy cylinder housing.
Latch 1” throw solid brass deadbolt latch with hardened steel rod insert. 2-¾" & 2-3/4" backset
Standard deadbolt strike (9121), and 1/8” wood frame reinforcer package (9221).
Combination screws for both metal and wood doors.
Lock chassis heavy gauge dichromated steel. Featuring a zinc security installation shield.
UL LISTED
ANSI GRADE 1
ANSI/BHMA A156.5-2001
3 hours Fire rating
UL10C/UBC 7-2(1997)
Positive Pressure Rated
