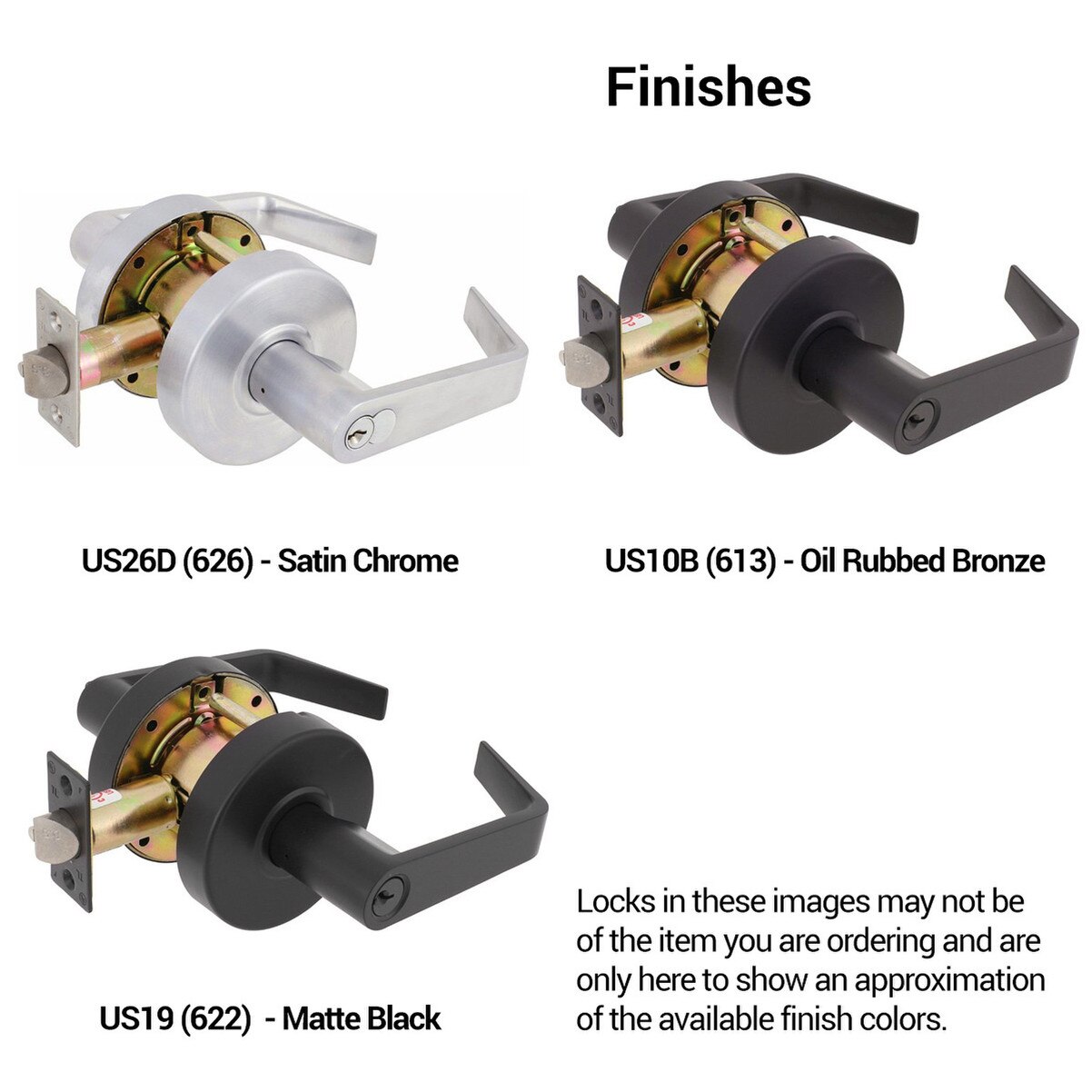

Grade 1 Commercial Lock, ES Series, Multiple Function & Finish Options
Description
Description

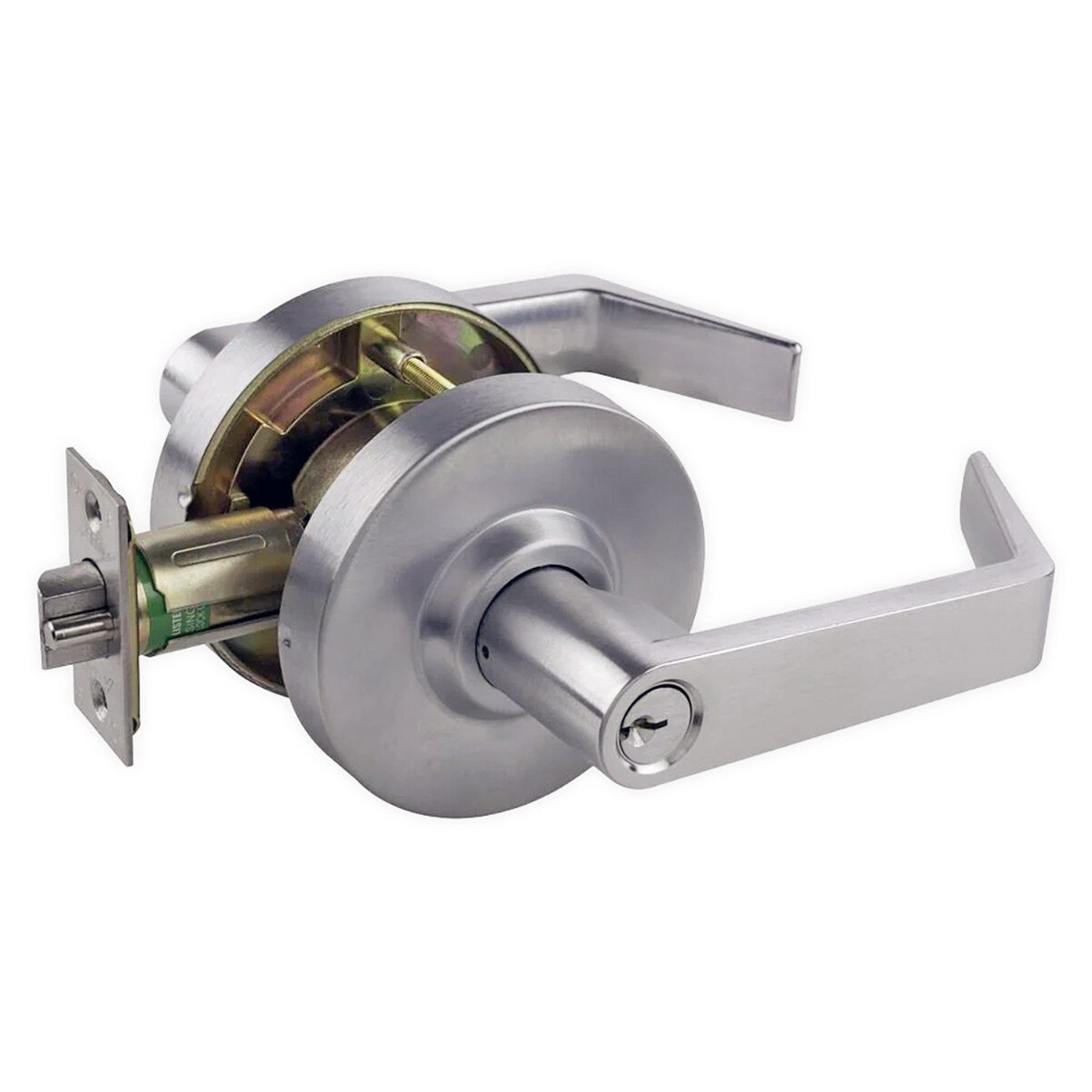

Advantage ES Series ANSI Grade 1 Lock
Features
- Clutch Function Standard
- Independent Torsion Spring
- Fast & Easy Installation
- Removable Thru Bolt
- Concealed Mounting Screw
- Exceeds 800,000 Cycles
- 3 Hour Fire Rated
Lock Functions
 | 500/100 ENTRANCE (ANSI F109) Pushing turn-button in inside lever locks outside lever. Turning inside lever or operating key in outside lever release button automatically. Closing door does not release button. Button is fixed in locked position by turning to horizontal position. |
 | 501/101 PASSAGE (ANSI F75) Both levers are always unlocked |
 | 502/102 PRIVACY (ANSI F76) Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside, rotating inside lever, or closing door. |
 | 504/104 STOREROOM (ANSI F86) Deadlocking latch bolt operated by key in outside lever or rotating inside lever. Outside lever is always locked. |
 | 507/107 COMMUNICATING PASSAGE (ANSI F111) Blank plate outside. Inside lever always unlocked. |
 | 508/108 STORE DOOR (ANSI F91) Deadlocking latch operated by either lever. Key either locks or unlocks both levers. Caution: double locks can create a hazard to life during emergencies. Only use in strict accordance with existing codes.s |
 | 509/109 CLASSROOM (ANSI F84) Deadlocking latch bolt operated by key in outside lever or rotating inside lever. Outside lever locked or unlocked by key. Inside lever is always unlocked. |
 | 511/111 COMMUNICATING KEYED (ANSI F113) Locked or unlocked by key from inside, blank trim outside. Dead locking latch bolt. |
 | 512 COMMUNICATING (ANSI F80) Key locks or unlocks either lever independently of the other. |
| 514/114 INSTITUTION (ANSI F87) Both inside and outside lever are always locked. Dead locking latch bolt operated by key on either side. |
 | 515/115 SINGLE DUMMY Non-functional dummy trim for one side of door. Used as a door pull or as matching inactive trim. |
 | 517/117 ENTRANCE/OFFICE (ANSI F82) Pushing button in inside lever locks outside lever. Turning inside lever or operating key in outside lever release button automatically. Closing door does not release button. |
| 521 CORRIDOR (ANSI F90) Operated by either side lever unless outside locked by key or inside push button. Unlocked by key, turning inside lever, or closing door. |
