9700 Heavy-Duty Vertical Rod Exit Device, Grade 1
Description
Description
Overview

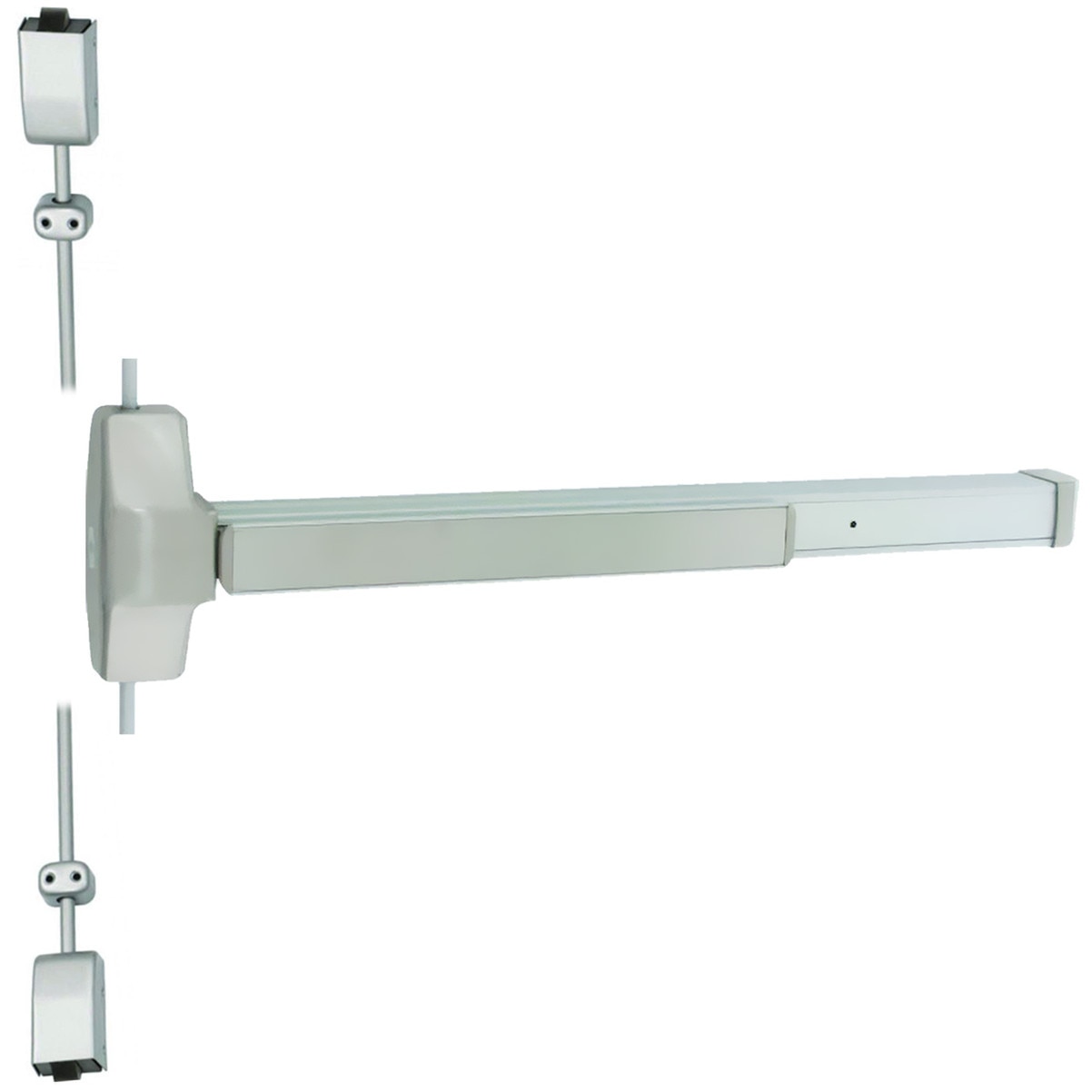

The 9700 Series Advantage V/R Exit Device is a grade 1 heavy-duty, steel vertical rod exit device. Fire rated, ADA compliant, and ANSI approved for maximum safety.
Specifications
Certifications
- ANSI Grade 1 approved, exceeds 500,000 cycles
- UL305 Listed for Panic Hardware
- UL Listed for up to 3 hrs. on "A" label Fire doors
- UL10B Neutral Pressure rated
- UL10C/UBC7-2 (1997) Positive Pressure rated
- Complies with ANSI 117.1 for accessible and usable Buildings and Facilities Standards
Door Fitting
- 1-3/4" thick standard
- 5-3/8" min. stile width required for single door at 5/8" stop
- 4-7/8"min. stile width required for double doors and V/R X Rim Device with overlapping strike (9285)
- Mounting Height - 41" from CL to finished door
Door Width
- 36", rail can be cut from the end to fit door size down to 30"
- 48", rail can be cut from the end to fit door size down to 40"
Door Height
- 84" (7') - Standard with 36" door width
- 96" (8') - Standard with 48" door width
Structure
- Head cover - plated zinc alloy
- Chassis - steel or stainless steel
- End cap - plated zinc alloy
- Rail assembly - heavy gauge extruded aluminum
Latch Bolt
- Rim - stainless steel, 3/4" throw
- automatic dead-latching by pressing down on the Guard Bolt
- V/R - Top: stainless steel, 19/32" throw
- Bottom: stainless steel, 39/64" throw
Strike
- Rim - Solid Stainless Steel (9570). 1/8" Thick Steel Shim (9571) included for 1/2" door stop
- Overlapping Strike (9585) for use on Rim Device with Surface Vertical Rod for Double Door
- V/R - Top: Stainless Steel with Roller (9572)
- Bottom: Stainless Steel with Roller (9573).
Fasteners
- Furnished with wood & machine screws
- Thru-bolts for F9500/F9700 (1346 & 1310)
Finish
- US32D on Head Cover, Touch Bar, End Cap, and Latch Cases
- Mounting rail is aluminum anodized US26D
Handing
- Rim - Reversible non-handed
- V/R - Standard with RHR or LHR, easily field reversible
Dogging
- Standard for 9500/9700 only
