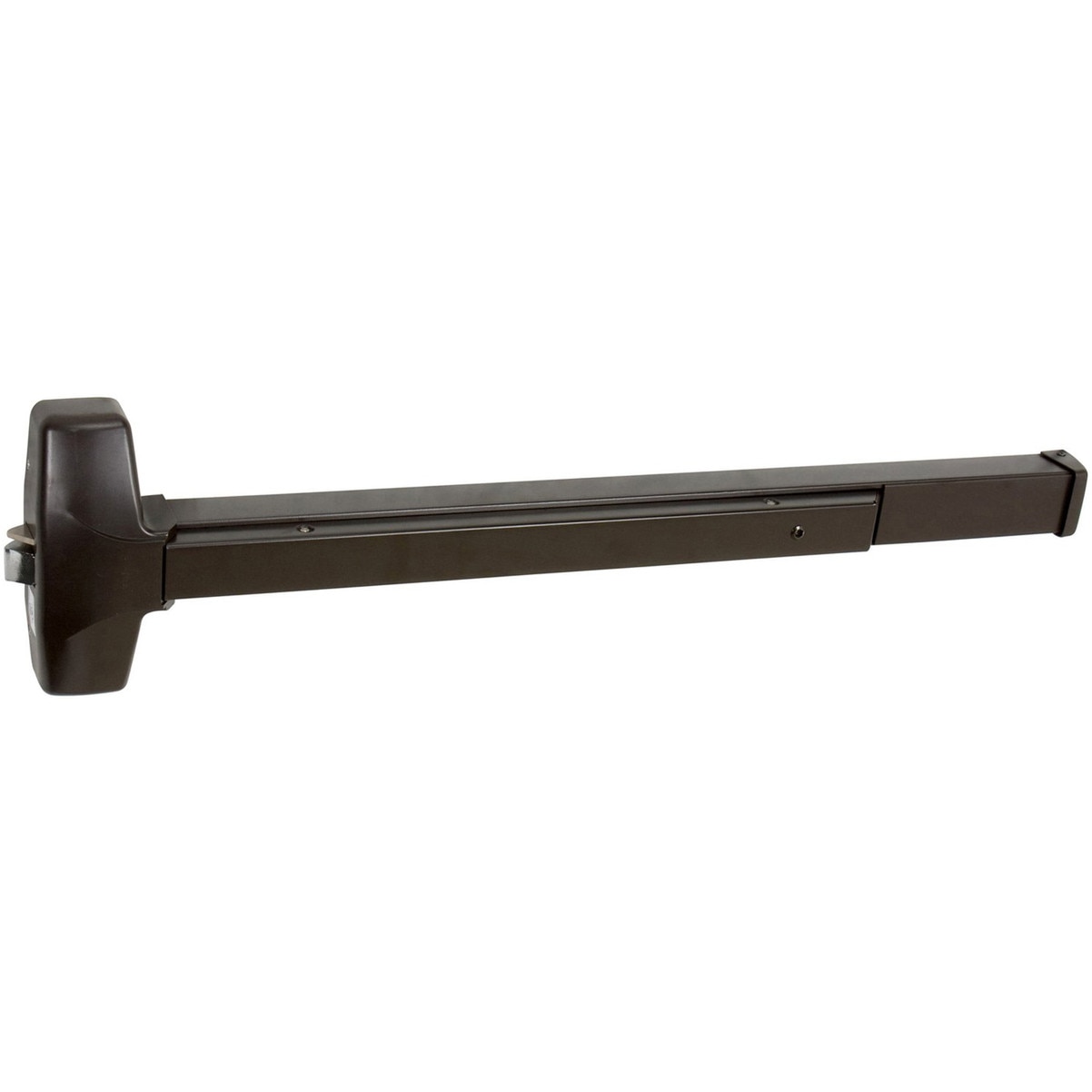

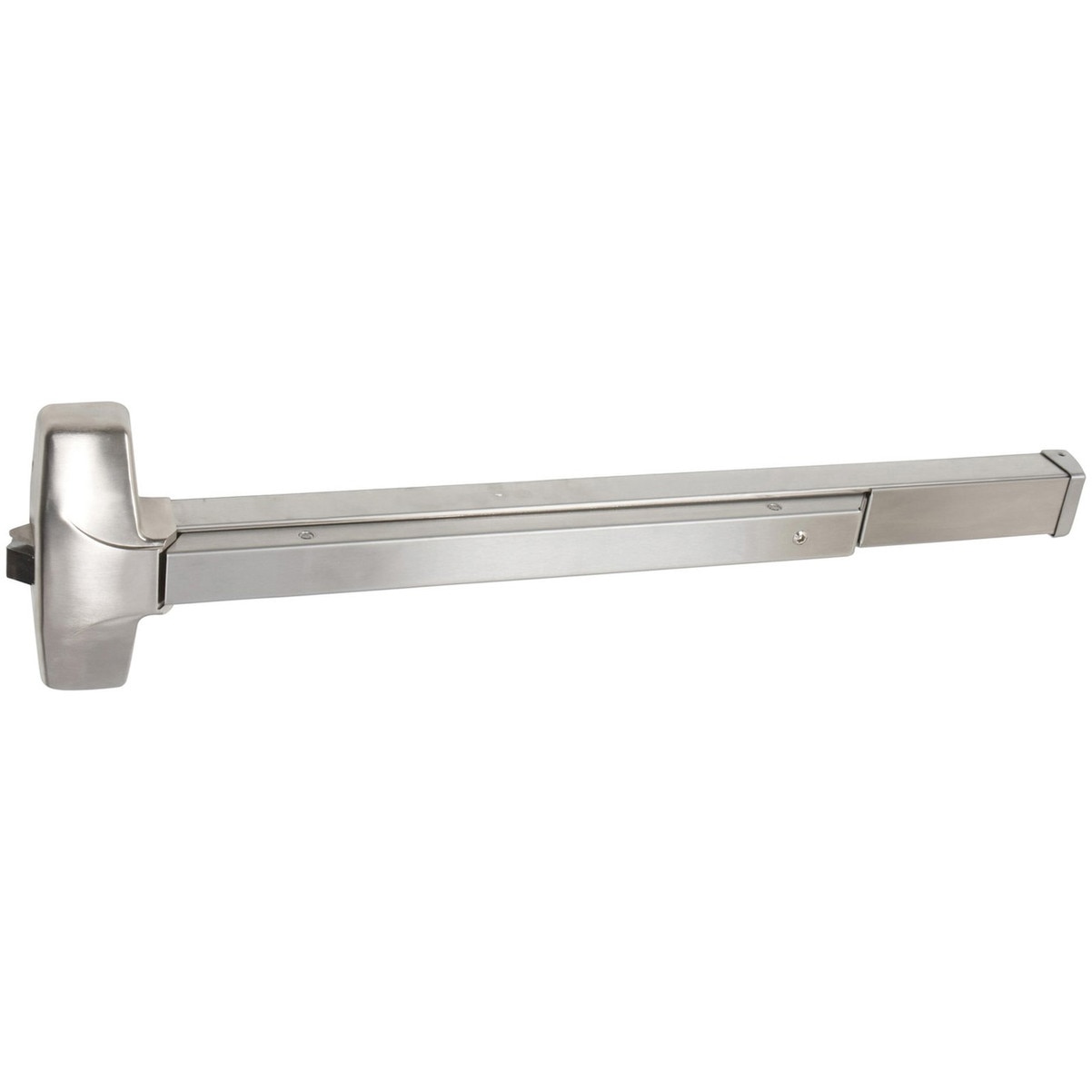

7000 Vertical Rod Exit Device, SVR, LBR, Grade 1
Description
Description
CERTIFICATIONS/COMPLIANCE:
- ANSI Grade 1 Approved, Exceeds 500,000 cycles
- UL Listed for up to 3 hours on “A” label fire doors*
- UL305 Listed for Panic Hardware
- UL10B Neutral Pressure Rated
- UL10C/UBC7-2(1997) Positive Pressure Rated
- Comply with ANSI117.1 for accessible and usable buildings and facilities standards
*Applies when Fire Rated option is selected
SPECIFICATIONS:
Materials:
Head Cover - Plated Zinc Alloy
Chassis - Steel or Stainless Steel
End Cap - Plated Zinc Alloy
Rail Assembly - Heavy Gauge Steel or Stainless Steel
Door Fitting:
1-3/4” thick standard
4-1/2” min. stile width for Single Door and 5/8” stop
Door Width:
36”, rail can be cut from the end to fit door size down to 30”
48”, rail can be cut from the end to fit door size down to 40”
Mounting Height - 39-3/16” from CL of Mortise Latch case to finished floor
Latch Bolt - Stainless Steel, 3/4” throw. Automatic Dead-Latching By Pressing the Guard Bolt.
Latch Case
Standard ANSI Size with faceplate 8” x 1-1/4”
Backset – 2-3/4” standard for ANSI Mortise Latch Case
Latch Bolt - Stainless Steel, 3/4” throw with auxiliary deadlocking latch.
Strike - 9170S Standard Rim Strike
Fasteners - Furnished with wood & machine screw, sex Bolts
Handing - Reversible non-handed
Dogging - Standard for 7000/7100
