Mini-Warehouse Roll-Up Door Bottom Seal - 3/8" T, 11/16" Bulb, Black, 100' Roll | MW-375-BK-KIT100

This 100-ft roll of black bottom weather seal is used to replace worn, cracked, flattened, or missing bottom seal on compatible self-storage, mini-warehouse, and other overhead doors that use an equivalent seal profile. The 3/8" T-style mount fits into the bottom seal retainer, while the 11/16" bulb helps close the gap between the door and the floor or threshold.

The 100-ft roll is a practical option for maintenance teams, contractors, and facilities replacing seal across multiple doors or cutting custom lengths in the field. This seal is made in the USA.

Fit and Compatibility

• Fits compatible 3/8" T-style bottom seal retainers
• 11/16" bulb profile helps improve door-to-floor sealing
• Black PVC weather seal for compatible roll-up and overhead doors
• Can be cut to length for multiple compatible doors
• Used on many self-storage, mini-warehouse, and compatible overhead door applications

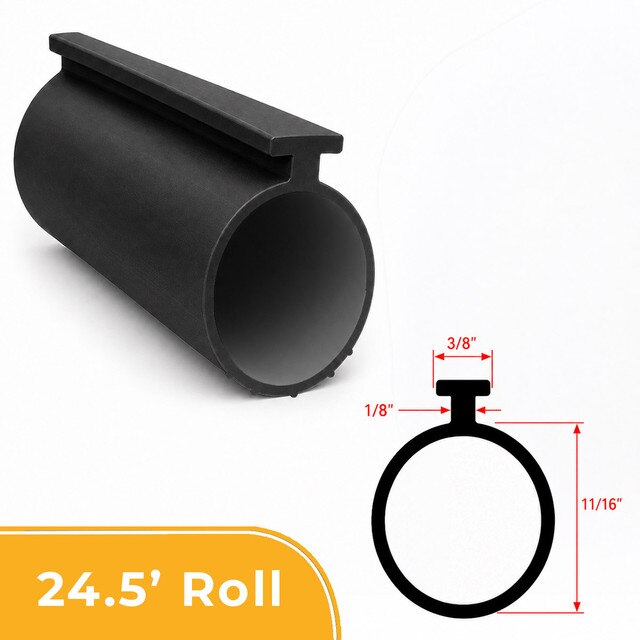

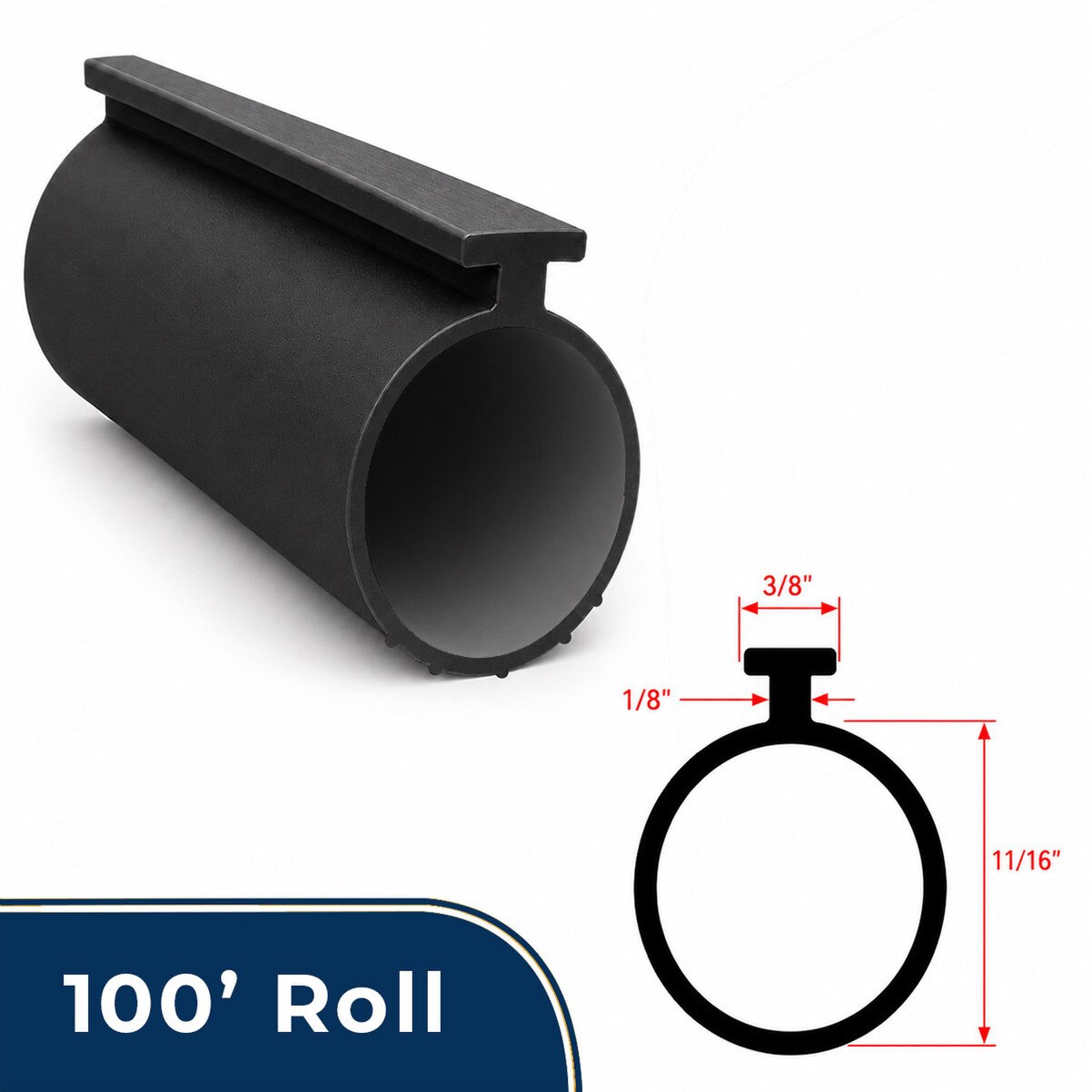

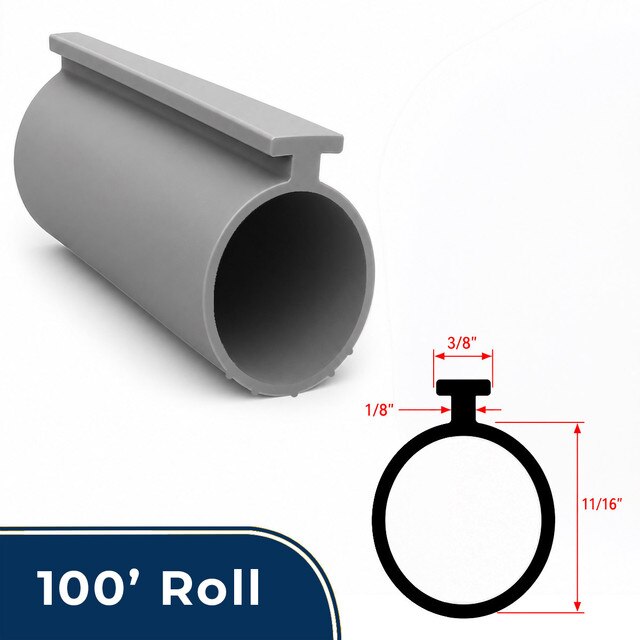

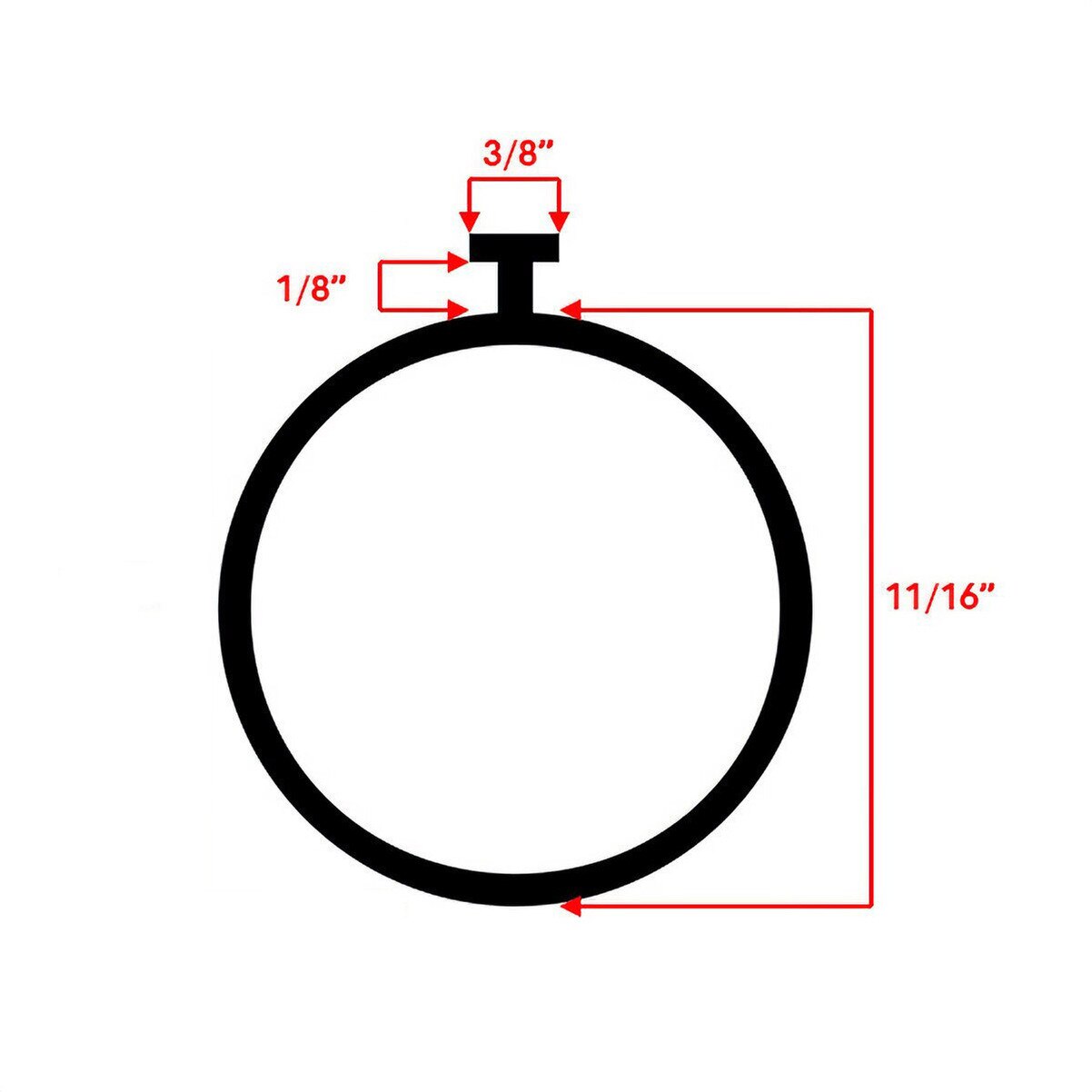

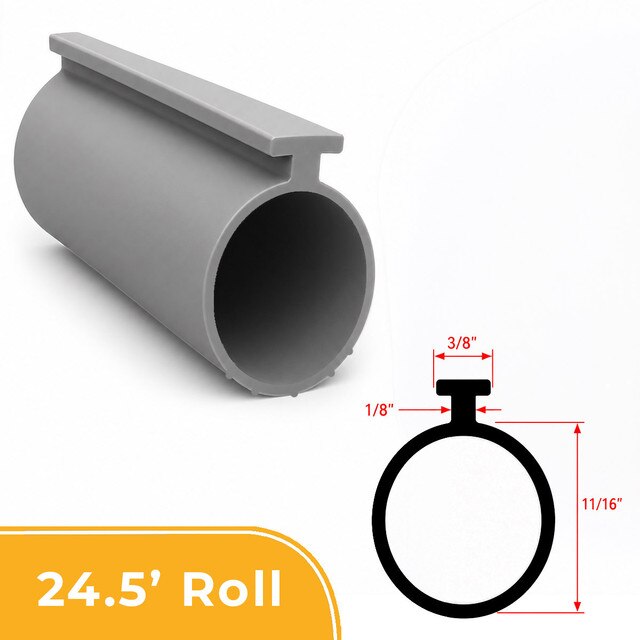

• Review the seal measurements shown on this page before ordering
• Samples may be ordered to confirm fit before purchasing full rolls

Installation Notes

• Remove the old bottom seal and clean dirt or debris from the retainer before installing the new seal.
• Check the retainer for crushed, bent, or pinched areas and straighten as needed.
• Cut the new seal slightly longer than needed, then trim to final length after installation.
• If needed, use a small amount of plastic-safe, non-staining lubricant in the retainer to help the seal slide through the track.
• Keep lubricants away from visible painted surfaces, hasps, latch areas, and any areas that may be repainted later.
• Avoid pulling with excessive force, which may stretch or damage the seal.
• Lightly crimp the track ends if needed to help reduce seal movement after installation.

This replacement seal may also be referred to as bottom seal, bottom weather seal, door astragal, or roll-up door weather stripping. It helps reduce drafts, light gaps, dust, and water intrusion at the bottom of compatible doors.
