Stop Clip For Janus Roll-Up Doors

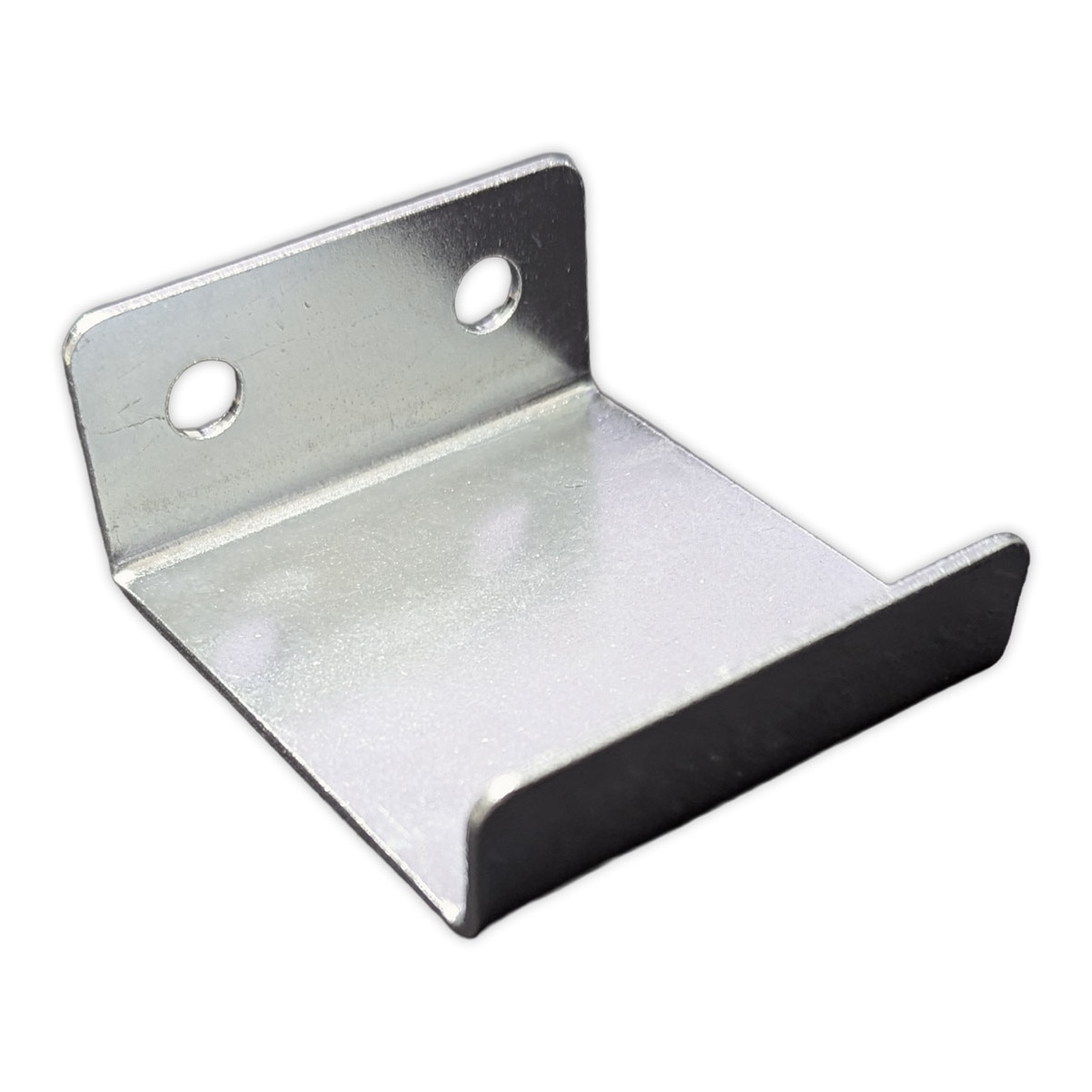

This replacement stop clip is used on compatible mini-storage and roll-up doors as a mechanical stop or keeper at the bottom bar. Depending on the door manufacturer and model, this part may be referred to as an inside bottom bar stop clip, door keeper, mini bottom stop, or curtain stop clip depending on the door model.

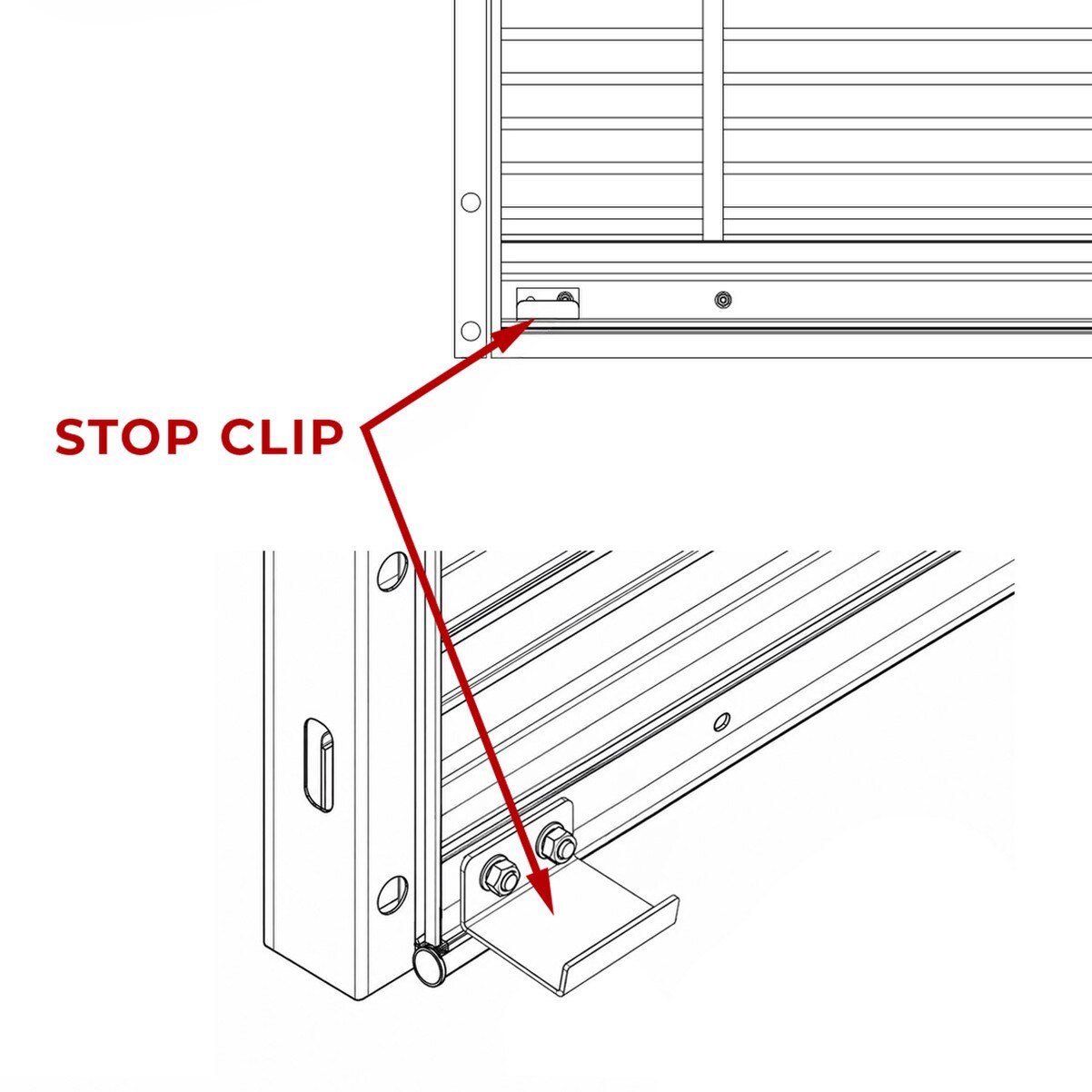

On a Janus Model 650 Mini Warehouse Door, this part functions as the inside bottom bar stop clip. One clip is typically installed at each end on the inside leg of the bottom bar angle. When the door is raised, the clips travel upward with the curtain and contact the guide-mounted mini head stops, helping stop the curtain at the fully open position.

This clip may also be suitable for other roll-up door applications that use a similar bottom bar stop or keeper. Because door designs vary, compare the measurements shown on this page with your existing part, bottom bar, and stop location before ordering.

Fit and Compatibility

• Used as an inside bottom bar stop clip on Janus Model 650 Mini Warehouse Doors
• May fit other roll-up door models that use a similar bottom bar stop or keeper
• Review the product dimensions and compare with the existing part before ordering
• Clip only - fasteners and accessory kit are not included unless shown separately

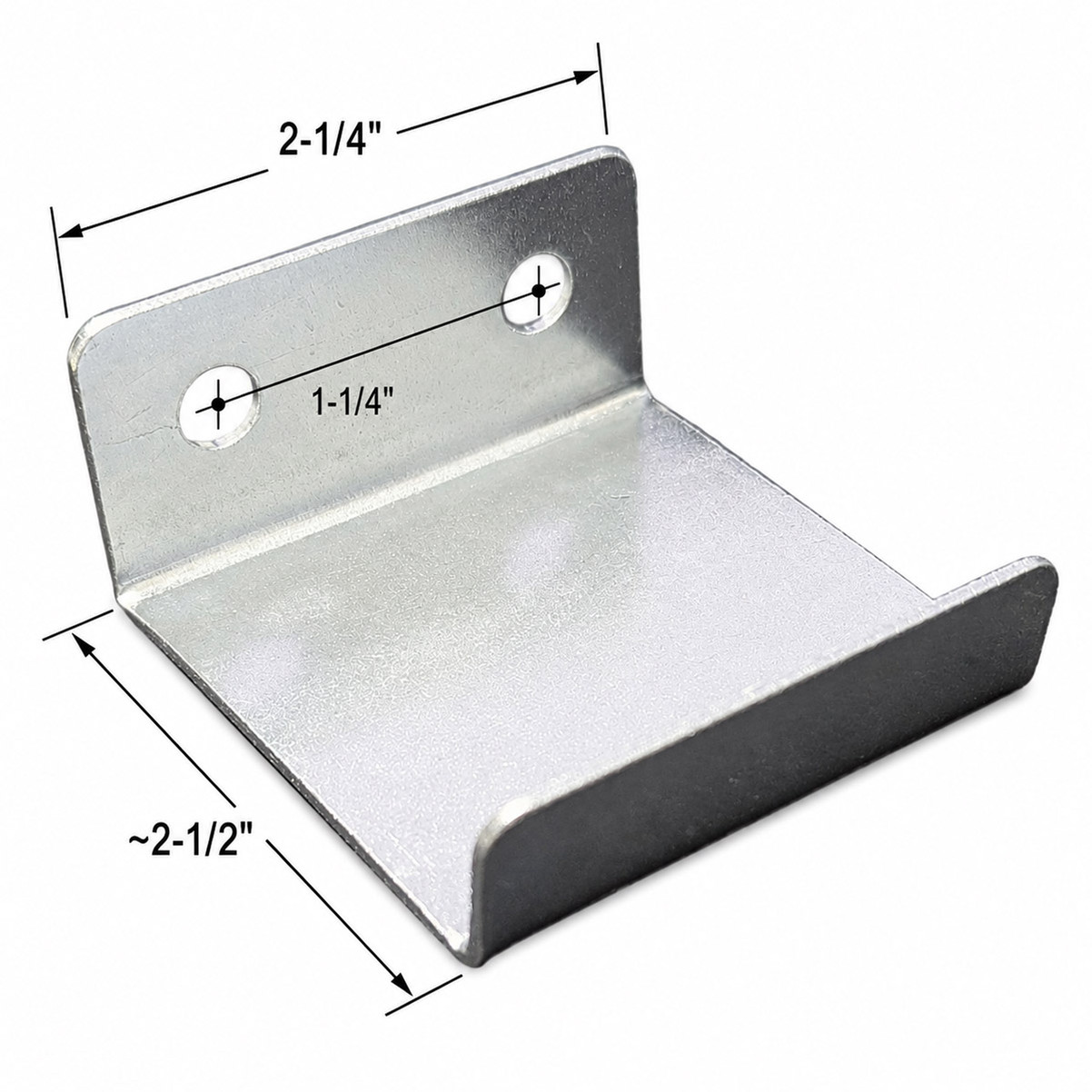

Approximate Dimensions

• Overall width: 2-1/4"
• Overall depth: approximately 2-1/2"
• Mounting hole spacing: approximately 1-1/4" center-to-center
• Two mounting holes

Installation Notes

• Inspect the existing bottom bar, stop clip location, and guide stop before removing the old part.
• For Janus Model 650 doors, this clip installs at each end of the inside leg of the bottom bar angle.
• Confirm that the replacement clip aligns with the existing bottom bar and stop location before final installation.
• Use appropriate fasteners for your door model, bottom bar, and installation requirements.
• After installation, raise the door carefully and confirm the clips contact the head stops or door stops correctly before returning the door to regular use.

This product may also be referred to as a roll-up door stop clip, inside bottom bar stop clip, bottom bar keeper, door keeper, curtain stop clip, or mini warehouse door stop clip.
