EC000 Custom Color, FRC Smooth (Flexible Rubber Coating), 3.5 Gallon

(0)No Reviews yet
SKU: EC000-5005-3.5

FRC Smooth - Flexible Rubber Coating

Water-Based Encapsulating Rubber Coating

  • Great for wood and concrete floors
  • Suitable for indoor and outdoor applications
  • Low VOC, meeting all California VOC standards
  • Good UV, impact, abrasion, and chemical resistance
  • Slip-resistant and waterproof surface
  • High-wear, traffic resistant coating

Standard Colors

EC100 Glossy/Bright White
EC110 Satin/Iced White
EC120 Lightstone
EC130 Desert/Natural Tan
EC140 Desert Sand
EC150 Sandstone
EC160 Classic Beige/Cobblestone
EC200 Black
EC210 Bronze
EC220 Silhouette/Oxford Gray
EC230 Continental Brown
EC250 Machine Gray
EC260 Classic Gray
EC270 Ash Gray
EC280 Charcoal Gray
EC300 Patriot Red
EC310 Valentine Red
EC320 Cedar/Lighthouse Red
EC400 Sunset Orange
EC410 Sierra Sunset
EC411 PS Orange
EC420 Tangerine/U-Haul Orange
EC500 Safety/Bright Yellow
EC510 UB/Life Yellow
EC600 Forest Green
EC610 Colony Green
EC620 Evergreen/Hunter Green
EC630 Fern Green
EC640 GS Green
EC650 Marine Green
EC660 Teal
EC670 Extra Wasabi
EC680 Apple Lime Cocktail
EC690 Dark Teal
EC700 Extra Green
EC800 GS Blue
EC810 Polar/Hawaiian/Cambridge Blue
EC820 Royal Blue
EC830 Smart Blue
EC840 Ultra Marine Blue
EC900 Maroon/Garnet
EC920 Cobalt Blue
EC930 Plum
$195.97

This item is AVAILABLE TO ORDER

Description

FRC Series Overview


FRC High-Build – Designed for use on damaged wood and concrete. This formula contains 50–60 mesh vulcanized rubber aggregate to increase thickness and help fill cracks or other surface damage. Multiple layers can be applied to build mil thickness and achieve a more even surface. For a smoother finish texture, FRC High-Build can then be top-coated with FRC Smooth.


FRC Smooth – Rubberized coating which can be used as a topcoat over FRC High-Build to achieve a smoother and less textured surface. It can be applied as a standalone coating to properly prepared wood, concrete, and primed metal substrates. FRC provides surface protection, water proofing, and slip resistance.


FRC Patch - Patching compound for use with FRC High-Build. Use for filling holes, cracks, chips and other damaged areas. Apply a primer coat of FRC High Build to seal the surface before patching. Do not apply directly to raw wood or concrete. Always allow ample time to dry before coating. As a rule of thumb, mix FRC Patching Compound with FRC High-Build in a 1:1 ratio by volume. Apply with a trowel or putty knife. Mix only what you can use in 10 minutes.


Vulcanized Rubber Aggregate – A granulated rubber product used in our FRC High-Build formula. Contractors who require more control over the amount of aggregate in the FRC coating can purchase the rubber aggregate separately and adjust the mix to meet specific project requirements.


Endura-Plate – An extremely durable multi-surface coating and sealant which can be used as a final topcoat over FRC products to reduce dirt pickup, enhance durability, and provide a hard, glossy finish. Endura-Plate top coat is always recommended for surfaces that require cleaning (sweeping, mopping, etc.) It can also be applied as a stand-alone coating on a wide variety of surfaces without the need for an FRC rubberized base and is an available in tinted or clear finishes.


** Note - As standalone coatings, FRC High Build and FRC Smooth will have a low sheen and slip resistant finish.
** Note - Apply Endura-Plate over FRC products for improved durability and cleanability. Endura-Plate will have a hard, glossy finish, but may be slippery when wet.


FRC Application Examples


Heavy Damage , Interior Hallway Floors (large/deep chips and cracks that need patching)

CoatProductsqft / gallonNotes
Prime CoatFRC High-Build200Seal existing surface.
Patch / Skim CoatFRC Patchas neededFill cracks, holes, and damaged areas. Allow to dry overnight before applying additional coats.
Primary Coat/sFRC High-Build100Build mil thickness as needed for desired result. Will have a low sheen, heavily textured, and slip resistant finish.
Smooth CoatFRC Smooth100-150*Optional. Apply for a smoother, less textured finish.
Gloss Top Coat 1Endura-Plate400*Optional but recommended for cleanability. Will have a hard, glossy finish.
Gloss Top Coat 2Endura-Plate400Always recommended to apply two light coats rather than a single heavy coat.


Medium Damage, Interior Hallway Floors (shallow/surface level damage that does not require patching)

CoatProductsqft / gallonNotes
Prime CoatFRC High-Build200Seal existing surface.
Primary CoatFRC High-Build100Build mil thickness as needed for desired result. Will have a low sheen, heavily textured, and slip resistant finish.
Smooth CoatFRC Smooth100-150*Optional. Apply for a smoother, less textured finish.
Gloss Top Coat 1Endura-Plate400*Optional but recommended for cleanability. Will have a hard, glossy finish.
Gloss Top Coat 2Endura-Plate400Always recommended to apply two light coats rather than a single heavy coat.


Heavy Damage, Exterior Deck Waterproofing (large/deep chips and cracks that need patching)

CoatProductsqft / gallonNotes
Prime CoatFRC High-Build200Seal existing surface.
Patch / Skim CoatFRC Patchas neededFill cracks, holes, and damaged areas. Allow to dry overnight before applying additional coats.
Primary Coat/sFRC High-Build100Build mil thickness as needed for desired result. Will have a low sheen, heavily textured, and slip resistant finish.
Smooth CoatFRC Smooth100-150*Optional. Apply for a smoother, less textured finish.


All technical advice, recommendations and services are rendered by the All From 1 Supply gratis. They are based on technical data which All From 1 Supply believes to be reliable, and are intended for professional use by persons having skill and know-how at their own discretion and risk. All From 1 Supply assumes no responsibility for results obtained or damages incurred from their use by the buyer in whole or in part. Published technical data and instructions are subject to change without notice.

Product Documents

FRC - Flexible Rubber Coating & Endura-Plate Ultra Durable Acrylic Enamel

Two Great Products That Work Well Together!

FRC – Flexible Rubber Coating is not a self-leveling product and you should not expect a perfectly smooth floor.


For more damaged floors, FRC “High-Build” may be used. It contains a granulated rubber aggregate to create a thicker, more resilient membrane. Multiple coats can soften and reduce visible surface texture and damage but will not completely hide it, so larger cracks or voids should always be repaired first with a suitable patching material.


The 'High-Build" leaves a lightly “pebbled” texture due to the aggregate; additional coats of standard (non-aggregate) FRC are then applied over this to build the membrane and further smooth the surface.


Once the FRC membrane is established, the floor can be top-coated with clear or tinted Endura-Plate, an ultra-durable acrylic enamel that provides a smoother, tougher, glossier finish that is easier to clean and maintain. Together, FRC and Endura-Plate offer an economical, water-resistant, high-performance system to extend the life of hard-working floors.


The images below show before images of some damaged wooden floors, a side view illustrating how the layers are typcially applied, and actual 'after' images of a floor coated using both FRC - Flexible Rubber Coating and Endura-Plate.

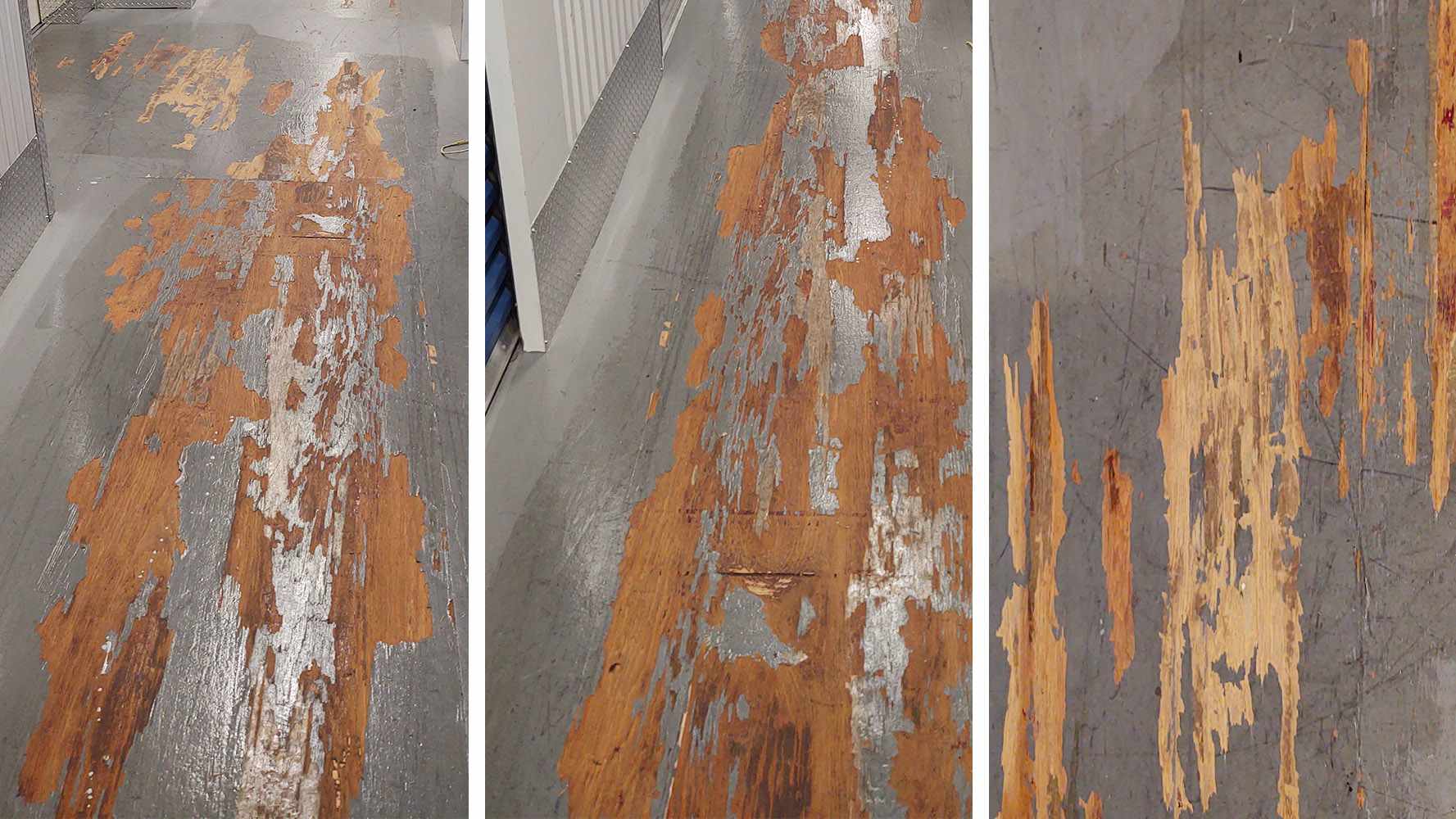

Close-up collage of damaged wood floor

[ Before ]

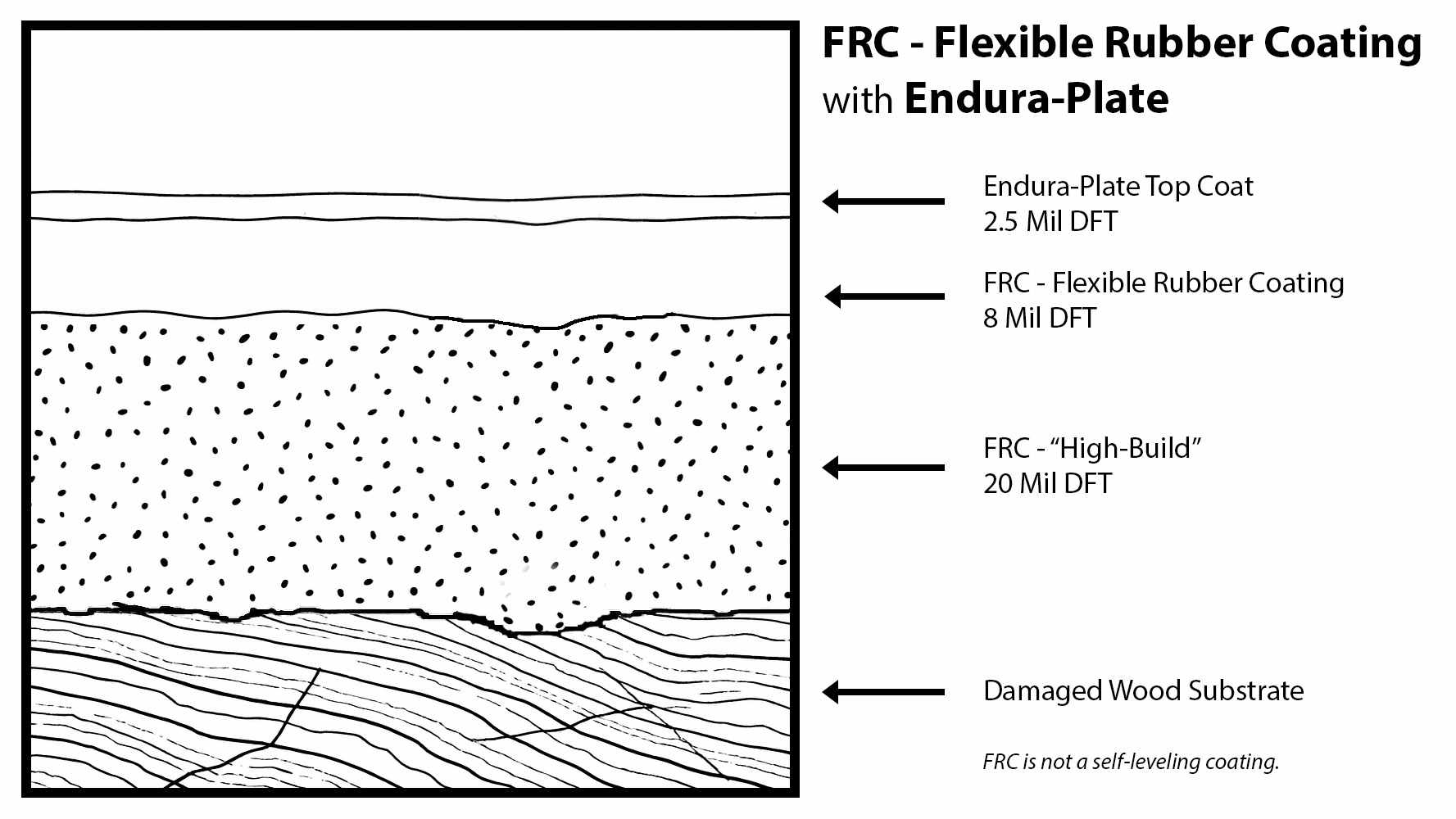

Side view of FRC application on floor

[ FRC/Endura-Plate Layer Diagram ]

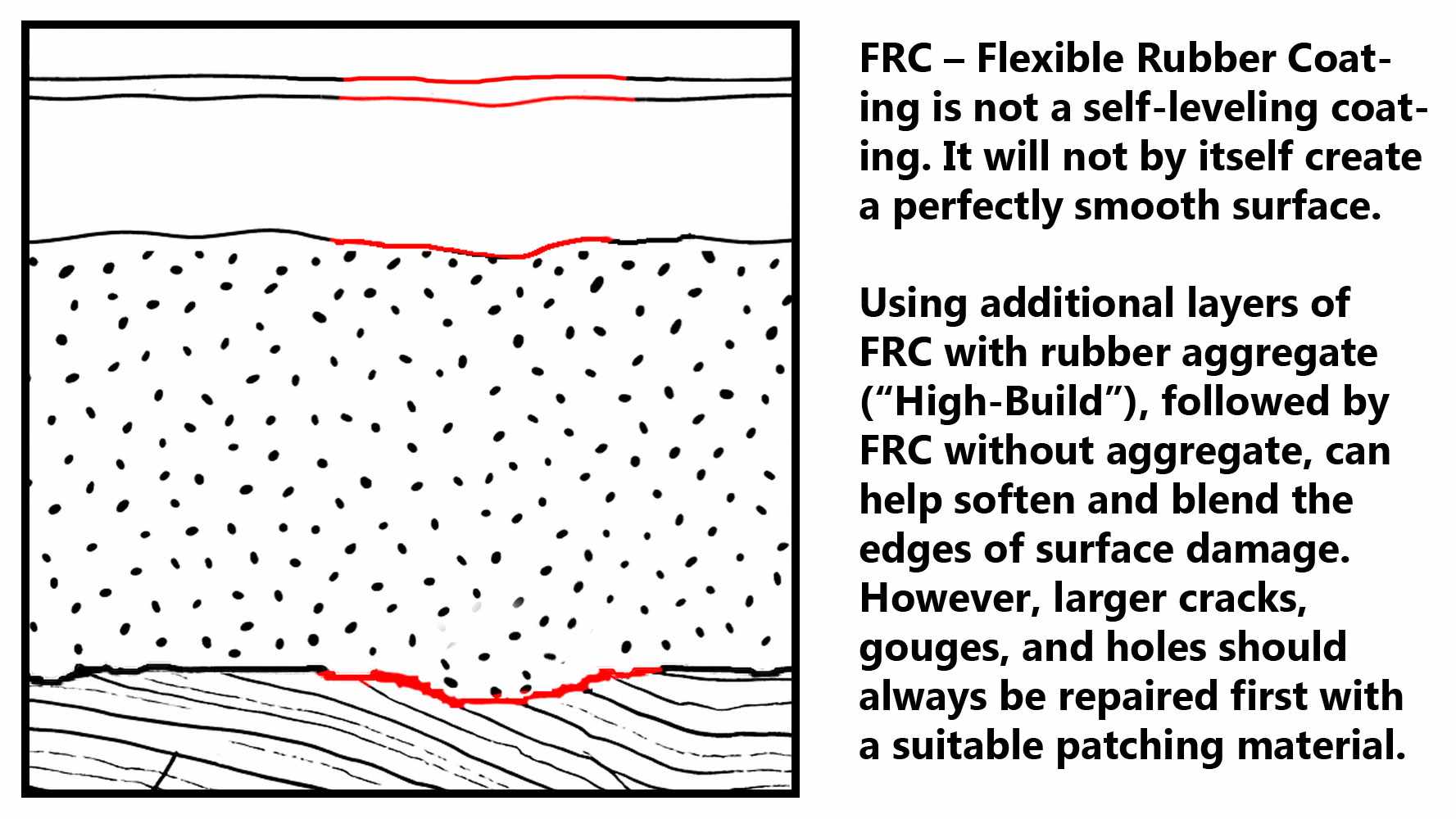

Second side view of FRC application on floor

[ Damage Softened ]

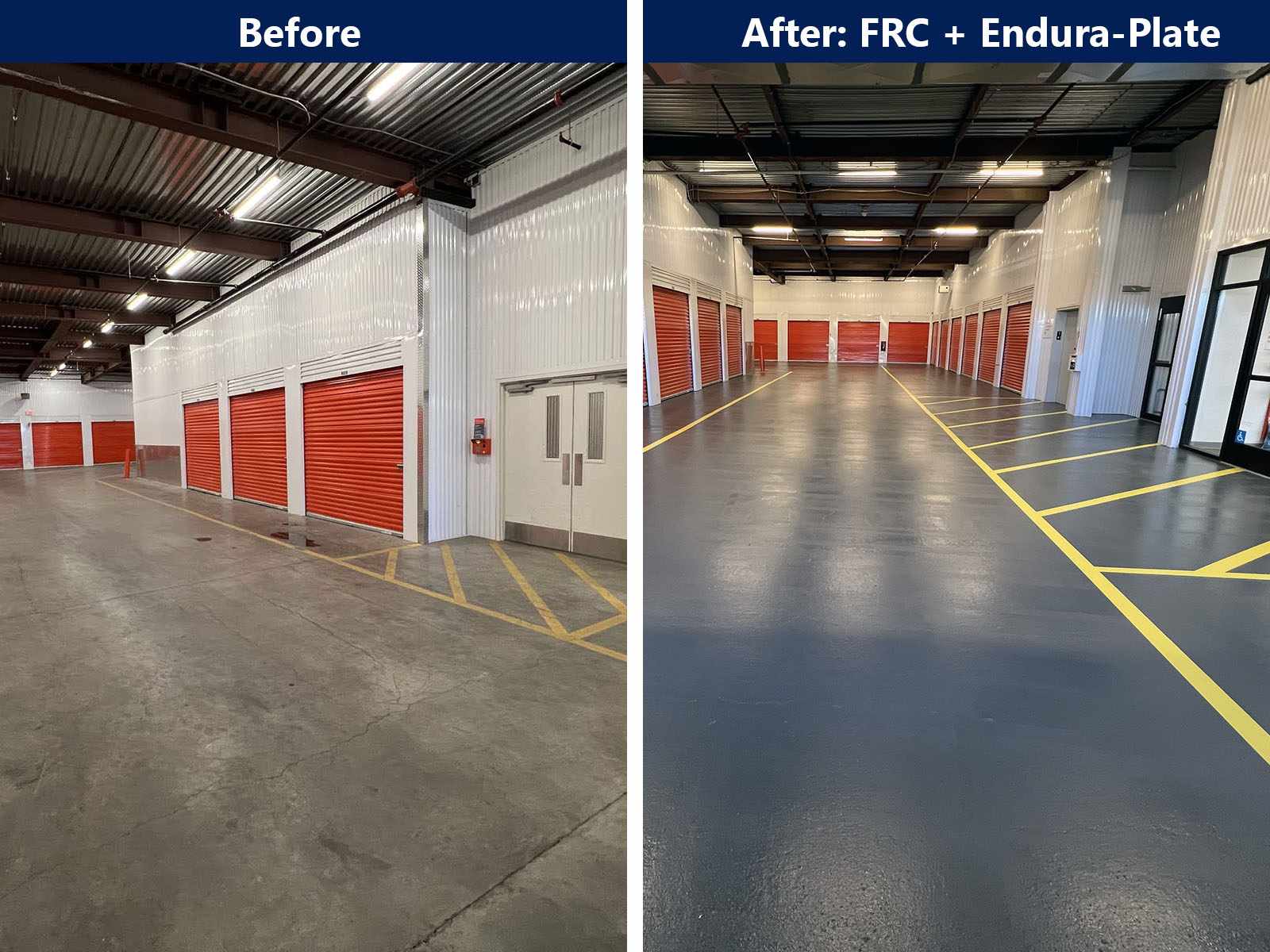

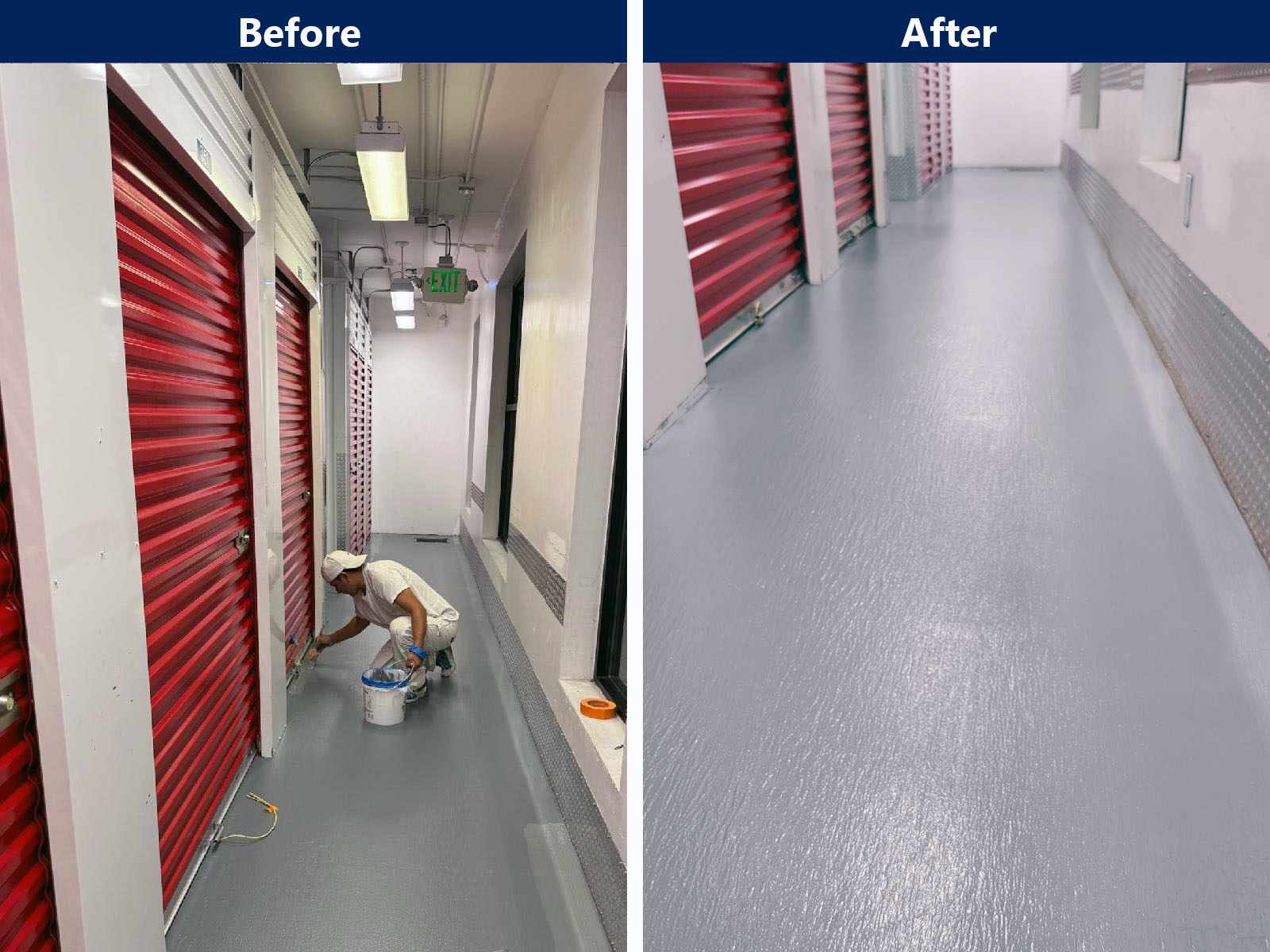

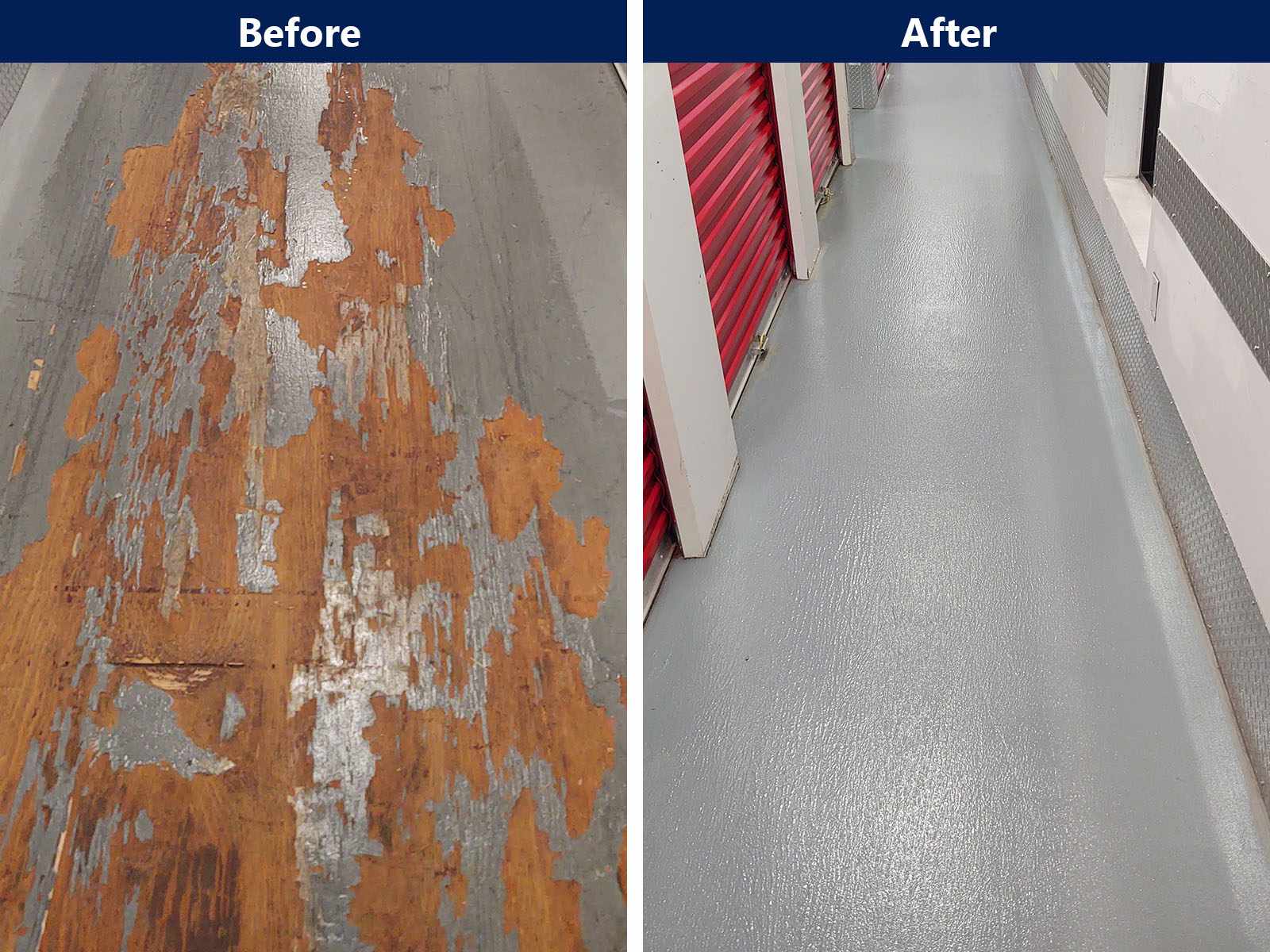

After FRC with Endura-Plate topcoat.

[ After FRC + Endura-Plate ]
