Privacy Bathroom Lockset, L Lever, Non-Keyed, Not Handed, Grade 1
Description
Description

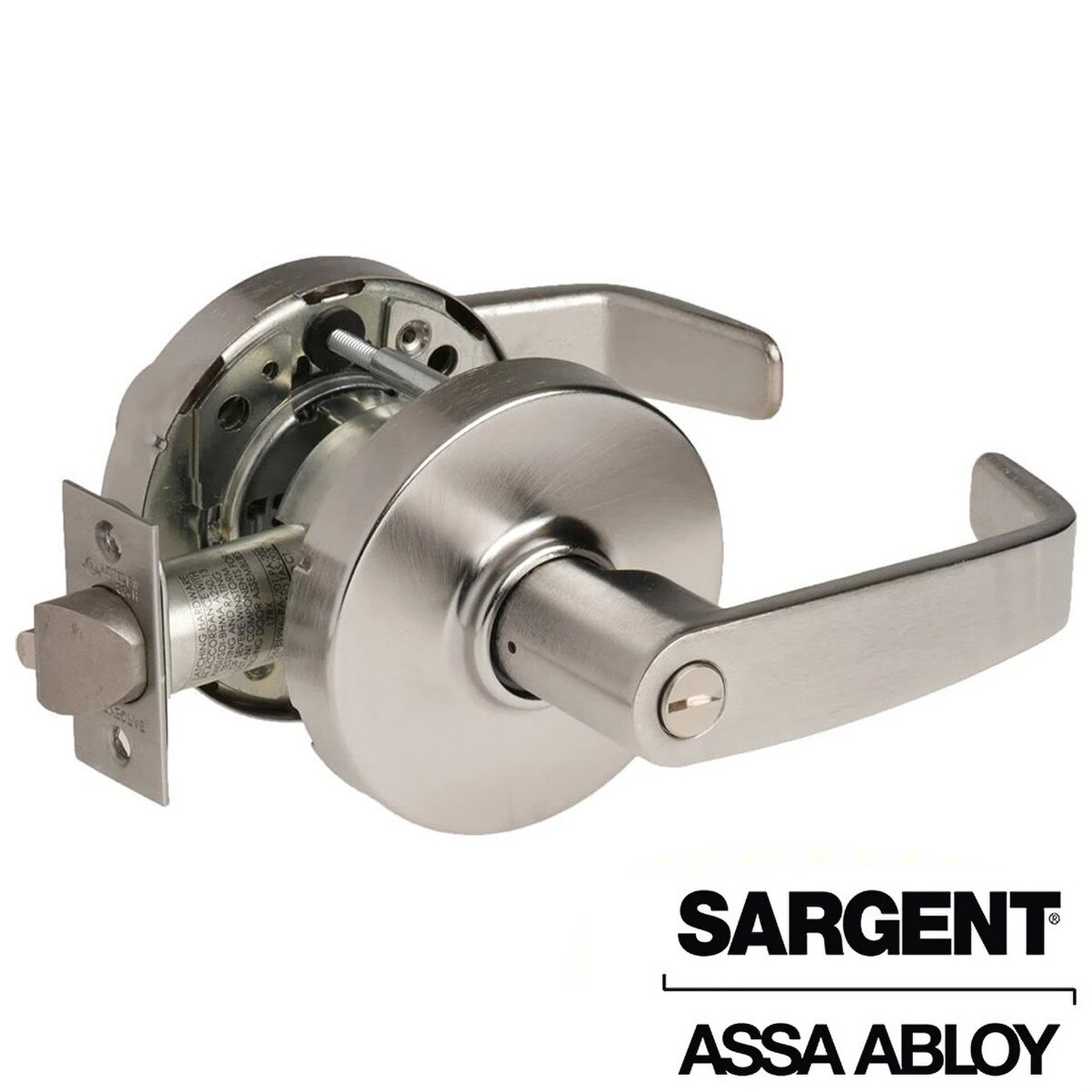

Sargent 28-10U65 LL, Grade 1 Privacy Bathroom Cylindrical Lock, L Lever, Non-Keyed, Not Handed.
Impressive strength and durability.
The SARGENT 10 Line cylindrical lock provides all that and more. With the strength to handle whatever you throw at it, the 10 Line offers the flexibility to accommodate storerooms to classrooms to access control applications.
Strength and security.
Heavy-duty design far exceeds industry testing standards. Security features provide additional resistance against vandalism and unauthorized entry.
Flexibility.
Accommodates retrofit applications and a variety of door preparations.
Efficient installation.
Convenient installation diagram and pre-assemble components makes for quick, easy installation in less than one minute.
Inventory Management.
Non handed lever designs provide for efficient warehousing.
Features
- ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times.
- UL-cUL listed for 3 hour fire doors and windstorm applications
- Applications: Offices, Schools/Universities, Hospitals, Manufacturing facilities
Specifications
| For Doors | 1-3/4" (44mm) thick door adjusts to 2" (51mm) standard 1-3/8" (35mm) thick door, 1- Option for Adapter plates |
| Backsets | 2-3/4" (70mm) backset w/ 1-1/8" front (standard) 2-3/8" (60mm) backset w/ 1" wide front (specify 20-) 3-3/4" (95mm) backset w/ 1-1/8" front (specify 23-) 5" (127mm) backset w/ 1-1/8" Front (specify 25-) |
| Cylindrical Housing | Steel, zinc dichromate finish |
| Front | Wrought brass, bronze and stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) Fixed Bevel 2-1/4" (57mm) x 1" (25mm) (included with 20-) |
| Strike | Wrought brass, bronze and stainless steel 800 curved lip strike — standard 808 curved lip ANSI strike (28- option) Wrought box strike available (WBS- option) |
| Hand | All 10 Line Locks are non-handed except for the G & Y Levers |
| Roses | Heavy wrought brass and bronze |
| Latch | Stainless steel 1/2" (13mm) throw Brass 3/4" (19mm) throw for pairs of doors (41- option) |
| Cylinder | Brass, 6 pin, LA keyway standard |
| Keys | Two, nickel silver |
| Door Prep | ANSI/BHMA A156.115 |
| Minimum Stile | 4-1/2" (114mm) |
Certification Compliance
| ANSI/BHMA | Certified ANSI A156.2 Series 4000 – Grade 1 |
| UL | UL listed to U.S.A. and Canadian safety standards Listed for 3 hour doors (double doors require 41- option) |
| Positive Pressure | Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies |
| ADA | All levers conform to ADA requirement for barrier-free accessibility |
| California Code | Levers (L, J & P) conform to California Administrative Code Title 19 and 24 |
| Hurricane Code | All individual components of a total door opening are required to comply with each code. Refer to the SARGENT Website (www.sargentlock.com) for specific code compliance listings for both the lock hardware and other door components. |
