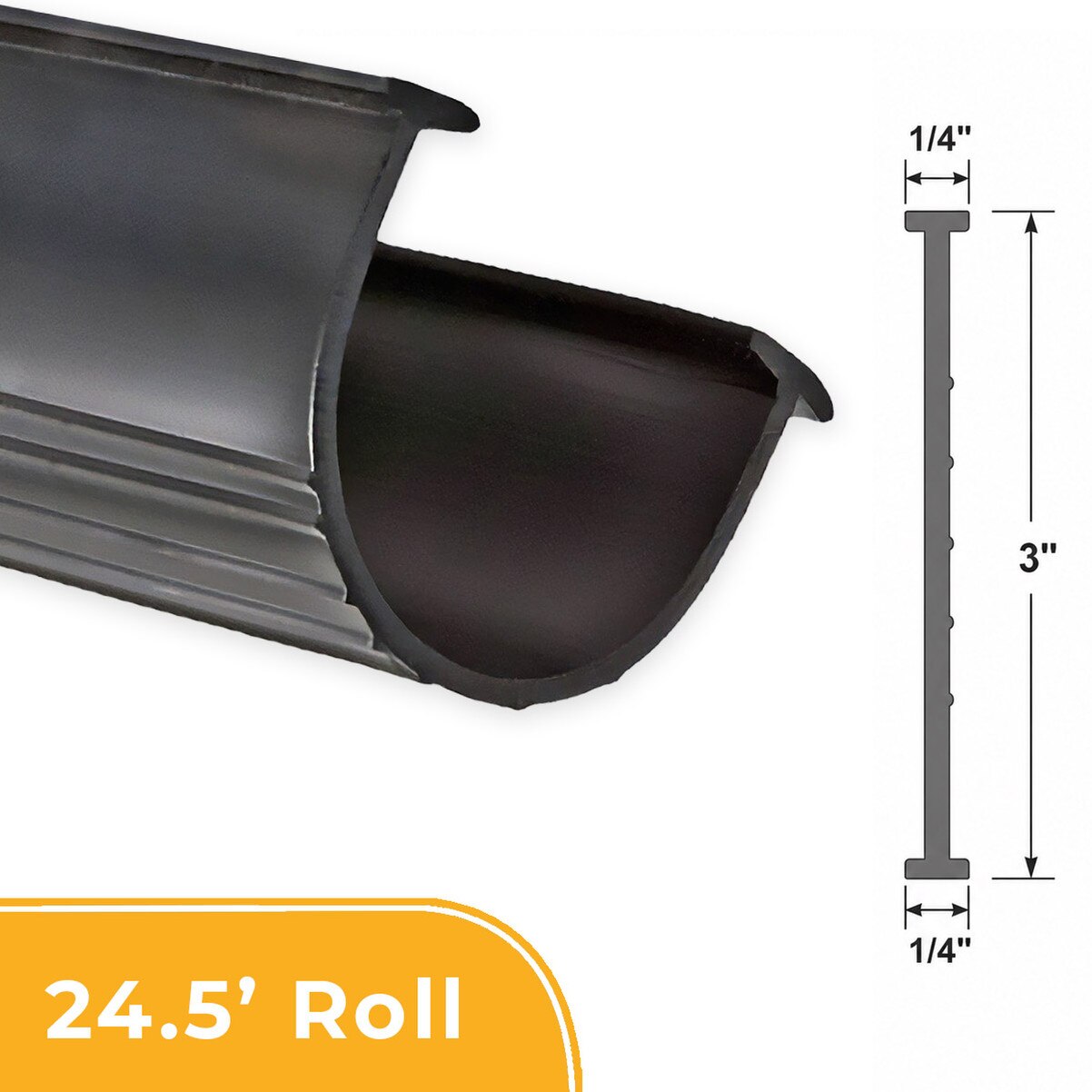

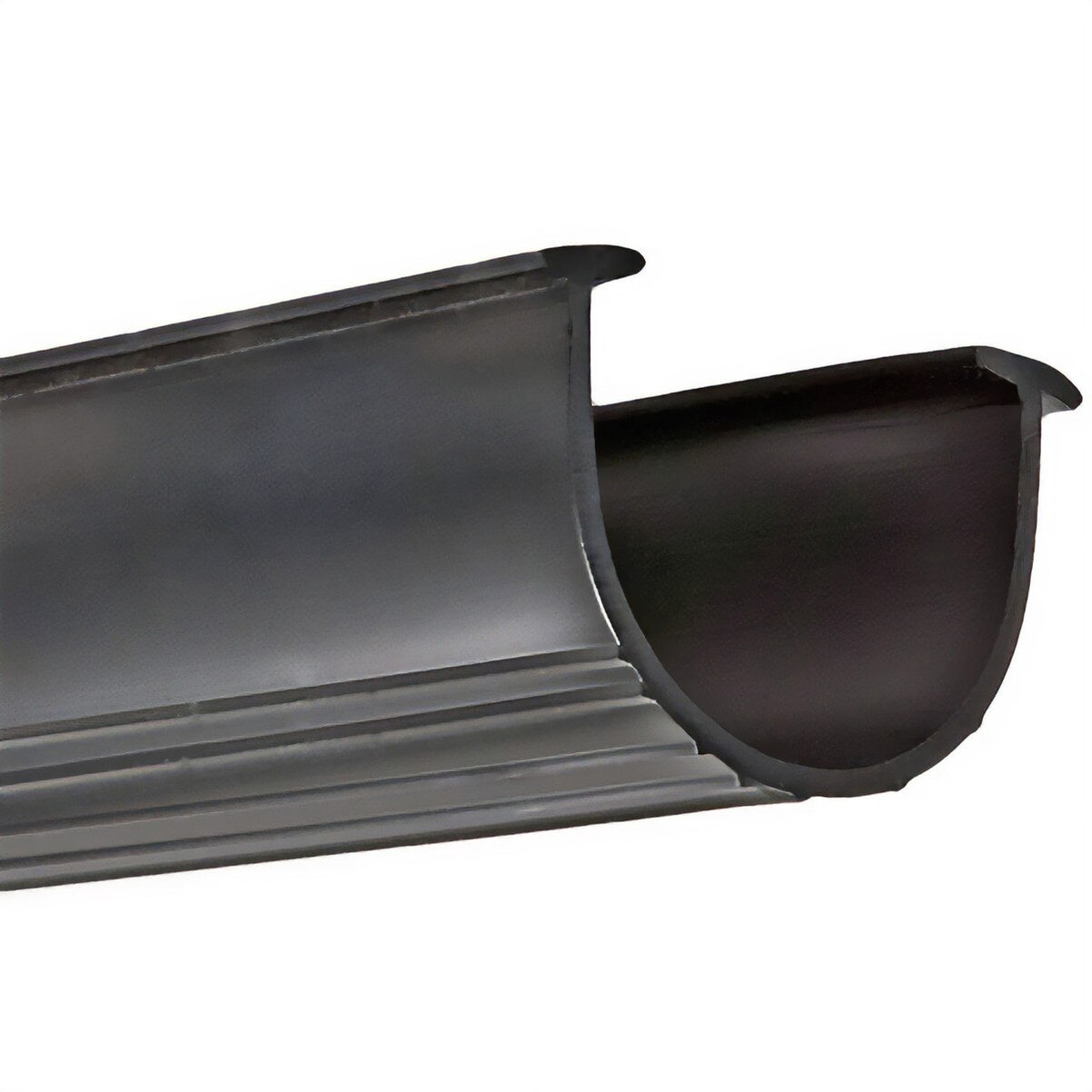

Roll-Up Door Bottom Seal - 1/4" T, 3" Flat, Black, 24.5' Roll | V2563-BL-W-KIT24.5

This 24.5-ft roll of black flat bottom seal is used to replace worn, cracked, torn, or missing weather seal on compatible roll-up doors. It fits doors that use a 1/4" T-style bottom retainer and a 3" flat seal profile.

This seal is made from durable, high-quality vinyl and is commonly used on self-storage and mini-warehouse roll-up doors, as well as other compatible overhead doors that use an equivalent seal profile. Review the measurements shown on the product page, or order a sample to confirm fit before purchasing full rolls. This seal is made in the USA.

Fit and Compatibility

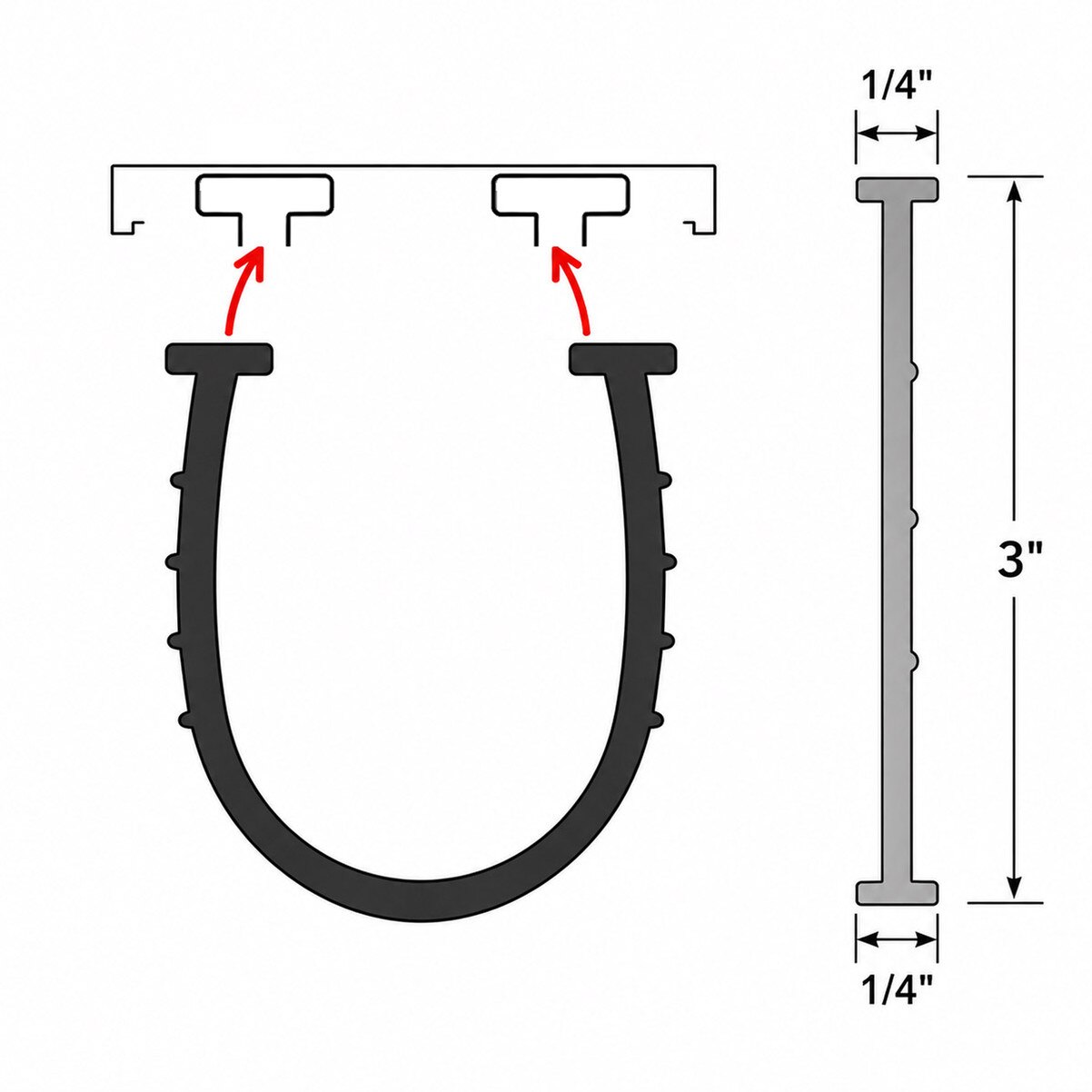

• Fits compatible 1/4" T-style bottom seal retainers
• 3" flat profile helps improve door-to-floor sealing
• Durable, high-quality black vinyl bottom seal
• Used on many self-storage, mini-warehouse, and compatible overhead door applications
• Review the seal measurements shown on this page before ordering
• Samples may be ordered to confirm fit before purchasing full rolls

Installation Notes

• Remove the old bottom seal and clean dirt or debris from the retainer before installing the new seal.
• Check the retainer for crushed, bent, or pinched areas and straighten as needed.
• If needed, use a small amount of plastic-safe, non-staining lubricant in the retainer to help the seal slide into place.
• Keep lubricants away from visible painted surfaces, hasps, latch areas, and any areas that may be repainted later.
• Avoid pulling with excessive force, which may stretch or damage the seal.
• Trim excess seal after installation and lightly crimp the track ends if needed to reduce seal movement.

This replacement seal may also be referred to as flat bottom seal, bottom weather seal, flat astragal, door astragal, or roll-up door weather stripping. It helps reduce drafts, light gaps, dust, pests, and light water spray at the bottom of compatible doors.
